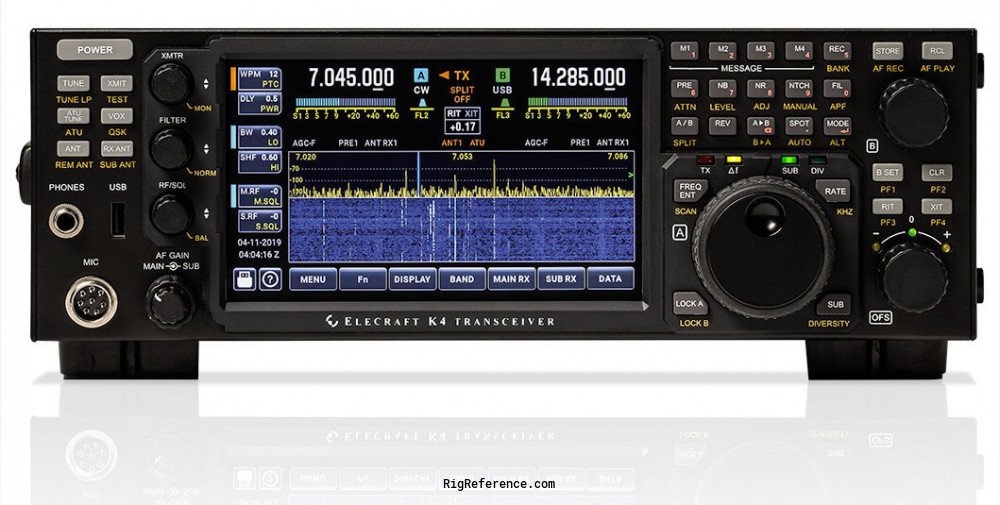

Elecraft K4 Direct Sampling SDR HF/VHF/UHF Transceiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

Basic Elecraft K4 transceiver provides 160-6 m, all-mode coverage; 100 W output; five receive RF sources; and wideband dual watch, allowing the main and sub receivers to be set for the same or different bands.

Frequency range

RX-range
0.1-54 MHz (2 m/70 cm optional)
TX-range
10-160 m + WARC / 6 m (2m / 70cm optional)
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  70cm  10m
Stability
±0.25 p.p.m. (TCXO)
Tuning steps
0.001 kHz
Filters
-

Receiver

Modulations
AM   FM   CW   USB   LSB   RTTY   Digital (other)   PSK31/63
Sensitivity
-
Selectivity
-
Receiver system
Direct-sampling SDR
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   FM   CW   USB   LSB   RTTY   Digital (other)   PSK31/63
RF-Output
0.1-10 / 0.1-100

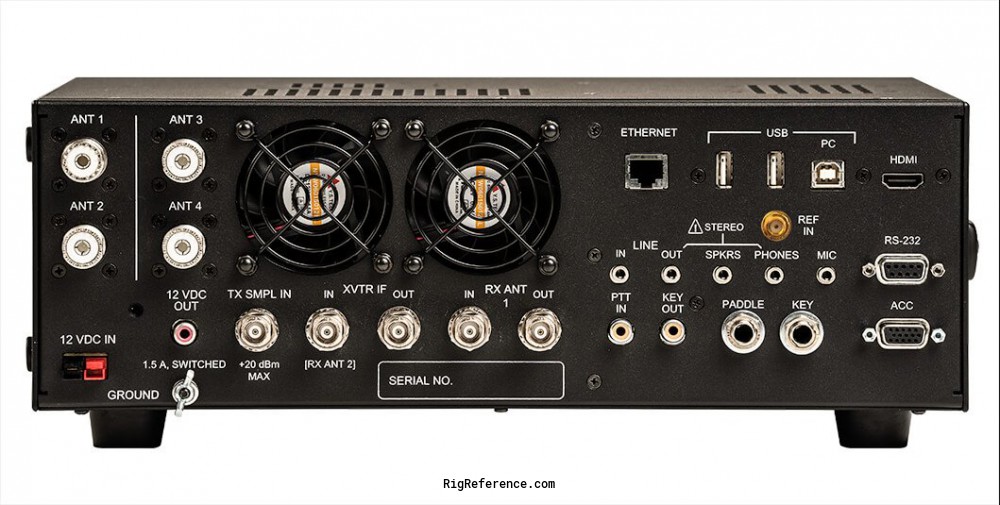

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
12-15V DC
Current drain RX
2 A
TX
23 A max

Physical

Dimensions (w×h×d)
343 × 114 × 254 mm (13.50 × 4.49 × 10.00 in)
Weight
4.54 kg (10.0 lbs)
Form factor
Base Station
Manufactured
Between 2019 and 20xx in USA
MPN
ELECRAFT-K000004

Other features

Memories
144 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Modular hybrid design for easy upgrade and expansion
DSP 7" color touch
display
HDMI video output
Ethernet jack
Remote control
Single or dual panadapter
USB-jacks
RS-232C
Transverter I/O
Iambic keyer
Twin RX
Real-time clock
Built-in help system
Linux-based computing module
Accessories
-
