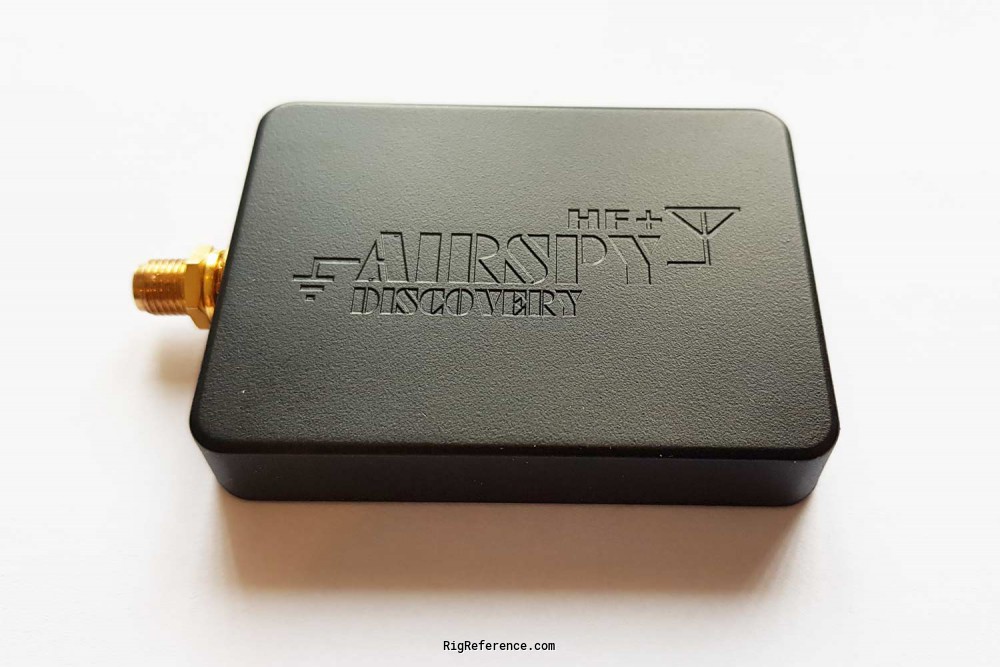

The Airspy HF+ Discovery is a headless receiver covering 0.005-31 / 60-260 MHz with a frequency stability of 0.5 p.p.m. and tuning steps of 1 p.p.b. It features tracking RF filters, direct sampling SDR receiver system and an image rejection of 120 dB. The HF+ Discovery requires 5 V DC (USB port) for power. It is 10 × 45 × 60 mm.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 2m 1.25m 10m 4m
- Frequency stability
- 0.5 p.p.m.
- Tuning steps
- 1 p.p.b.
- Memories
- ?
Receiver
- RX-range
- 0.005-31 / 60-260 MHz
- Modulations
- All mode Multiple (Software defined)
- Sensitivity
- 15 MHz: 0.022 µV (MDS @ 500 Hz BW)
64-118 MHz: 0.021 µV (MDS @ 500 Hz BW)
118-260 MHz: 0.02 µV (MDS @ 500 Hz BW) - Selectivity
- ?
- Filters
- Tracking RF filters
- Receiver system
- Direct sampling SDR
- IF-frequencies
- ?
- Image rejection
- 120 dB
- Audio output
- -
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- USB
Electrical
- Power requirements
- 5 V DC (USB port)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 45 × 10 × 60 mm (1.77 × 0.39 × 2.36 in)
- Weight
- ?
- Form factor
- Headless
- Manufactured
- Between 2019 and 202x in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Pre-selectors and Polyphase tracking filters
- Accessories
- -
- RigReference ID
- 6437
- MPN
- AIRSPY-HF+-DISCOVERY
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Airspy HF+ Discovery. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Airspy HF+ Discovery in Good condition is around:
- USD 113
These estimates are based on the following prices:
