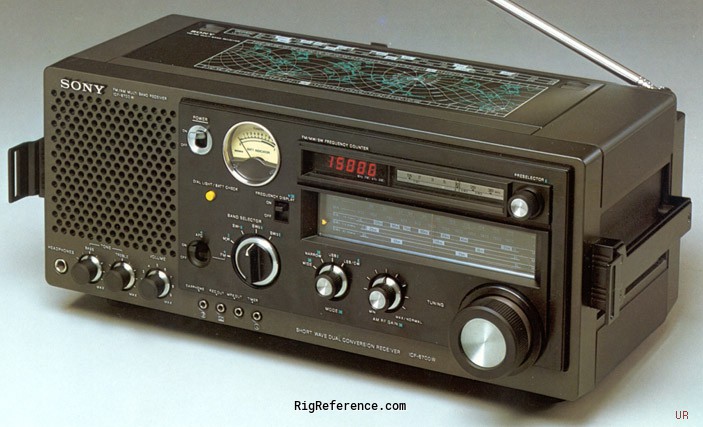

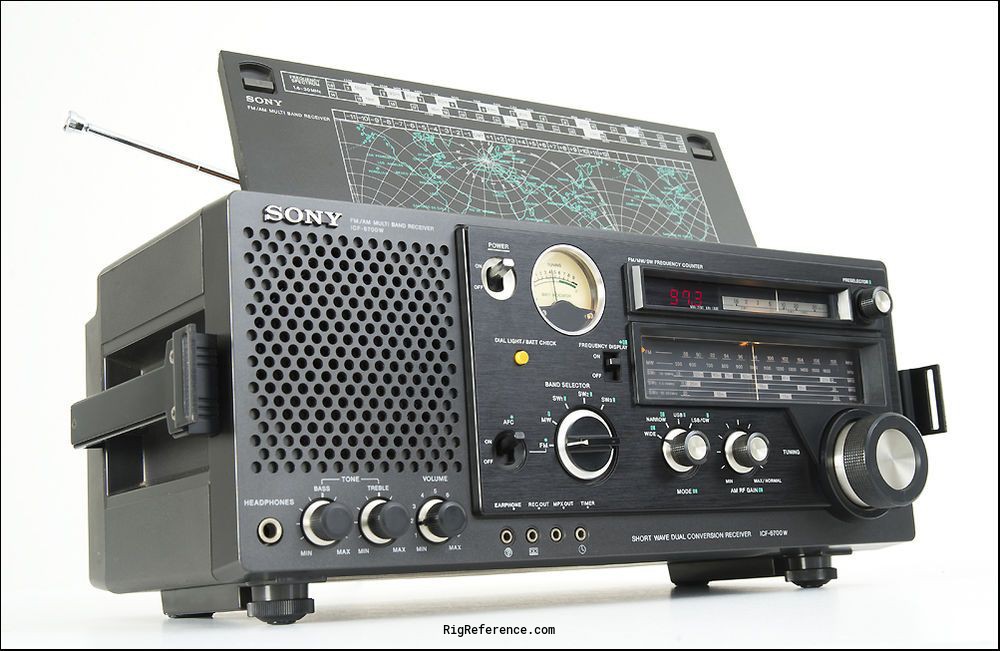

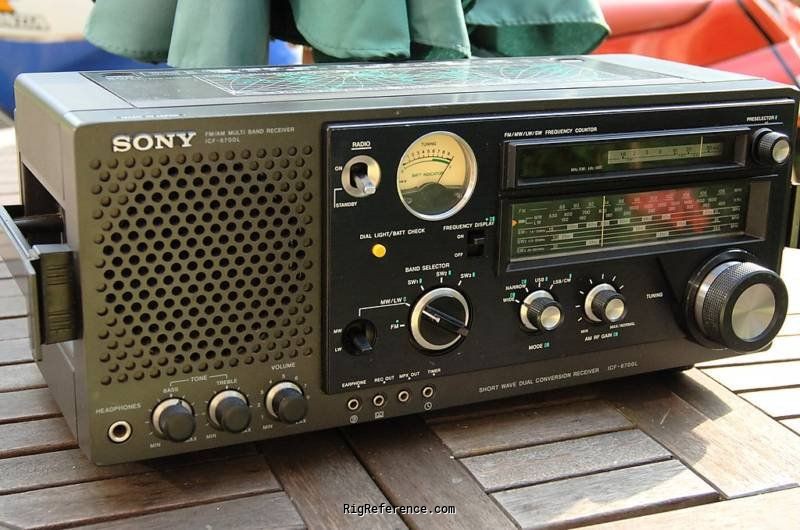

The Sony ICF-6700L worldband receiver covers AM, FM (87.5-180 MHz) and shortwave coverage from 150-400 kHz, 1.6-10, 11.5-20 and 20-30 MHz. The radio has both analog and digital displays. The digital display does not function on the FM band and may be switched off. Features include: S/Battery Meter, AFC, Time Chart/Map, Bass & Treble, Wide/Narrow Selectivity and BFO for SSB/CW. The main tuning knob is velvet-smooth and has a fly wheel. Jacks are provided for headphones, earphone, record output and timer input. The rear panel has antenna terminals. May be operated from 110/120/220/240 V AC or six D cells.

The Sony ICF-6700W is similar but lacks support for the LW band.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
Continuous

Receiver

RX-range
0.53-30.15 / 88-108 MHz
Modulations
AM   W-FM   CW   USB   LSB
Sensitivity
0.63 µV (S+N/N=6dB)
Selectivity
AM 9.0 kHz, AM-N/SSB 4.0 kHz
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz (SW1)
2nd: 455 kHz (SW2)
FM: 10.7 MHz
Image rejection
50-60 dB
Audio output
1 W

Connections

Antenna
Clamps / screws + Built-in ferrite bar + Built-in sweep
Impedance
50-70Ω
Other
-

Electrical

Power requirements
9 V DC or mains
Current drain RX
?
TX
-

Physical

Manufactured
Between 1978 and 19xx in Japan
Dimensions (w×h×d)
453 × 184 × 227 mm (17.83 × 7.24 × 8.94 in)
Weight
5.40 kg (11.9 lbs) including batteries
Form factor
Handheld

Other features

Memories
None
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
SONY-ICF-006700W

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sony ICF-6700L. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Sony ICF-6700L is around:

  • USD 168.00 ~ USD 139.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 168.50 Used / Good eBay
2019 USD 139.79 Used / Good eBay
