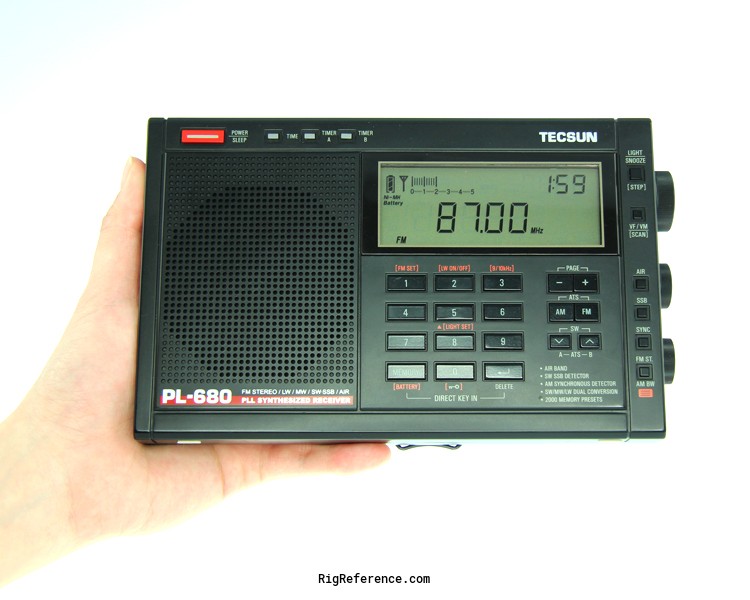

The Tecsun PL-680 is a handheld receiver. It covers 100-522 / 522-1710 kHz, 1.7-30 MHz, 76-108 MHz and 118-137 MHz frequency ranges. Tuning steps are selectable between 9 / 10 / 100 kHz. The receiver uses a double conversion superheterodyne system. It features 1 memory bank with 600 channels. Audio output is 1 W. The radio requires 6 V DC (4 × R6/AAA batteries) and weighs 2 kg. Dimensions are 116 × 188 × 31 mm.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- 9 / 10 / 100 kHz
- Memories
- 600 channels in 1 bank(s)
Receiver
- RX-range
- 100-522 / 522-1710 kHz / 1.7-30 / 76-108 / 118-137 MHz
- Modulations
- AM AM-sync FM W-FM Stereo SSB
- Sensitivity
- 3 µV
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1 W
Connections
- Antenna
- Built-in ferrite bar + Built-in telescopic + 3.5mm jack
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 6 V DC (4 × R6/AAA batteries)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 188 × 116 × 31 mm (7.40 × 4.57 × 1.22 in)
- Weight
- 2.00 kg (4.4 lbs) ?
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6397
- MPN
- TECSUN-PL-000680
