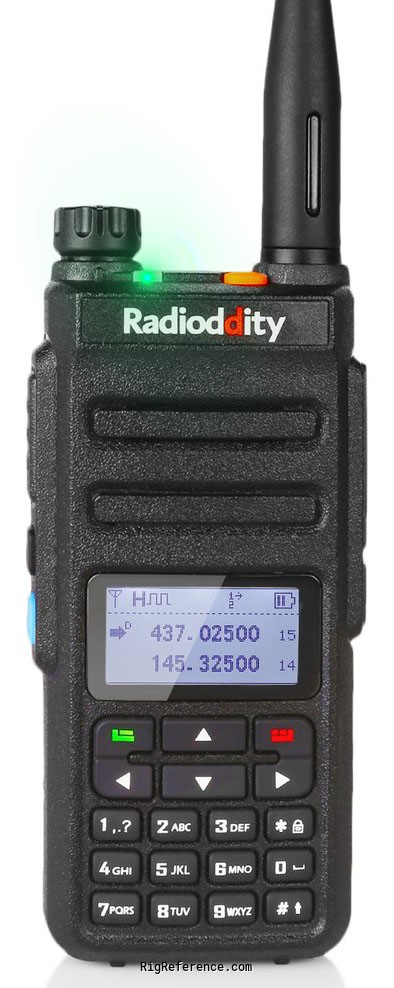

The Radioddity GD-77 is a handheld transceiver. The frequency range for both transmit and receive is 136-174 / 400-470 MHz. It has a frequency stability of ± 2.5 p.p.m. and tuning steps of 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 kHz. The GD-77 offers 1 memory bank with 128 channels. The RF output is selectable between 1 and 5 W, and it requires a power supply of 7.4 V DC.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 kHz
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 / 400-470 MHz
- Modulations
- FM N-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 136-174 / 400-470 MHz
- Modulations
- FM N-FM
- RF-output
- 1 / 5 W
Connections

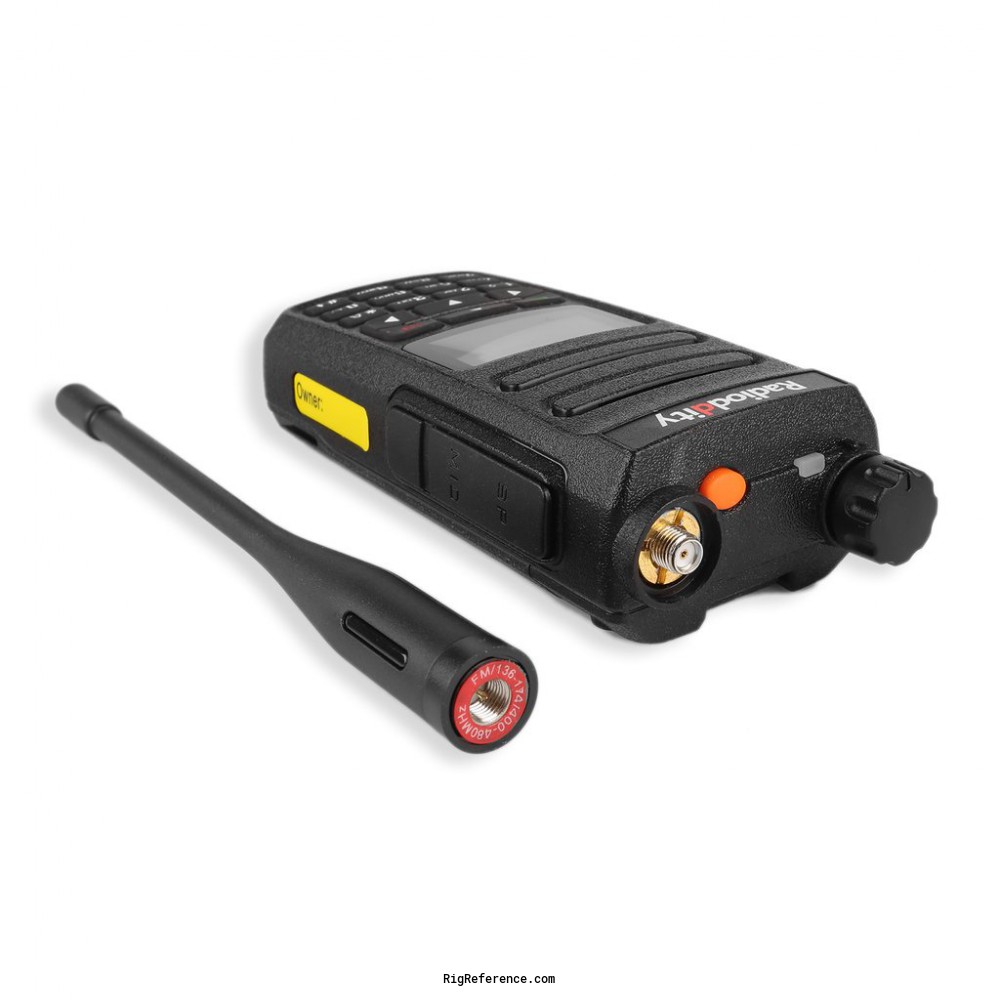

- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -

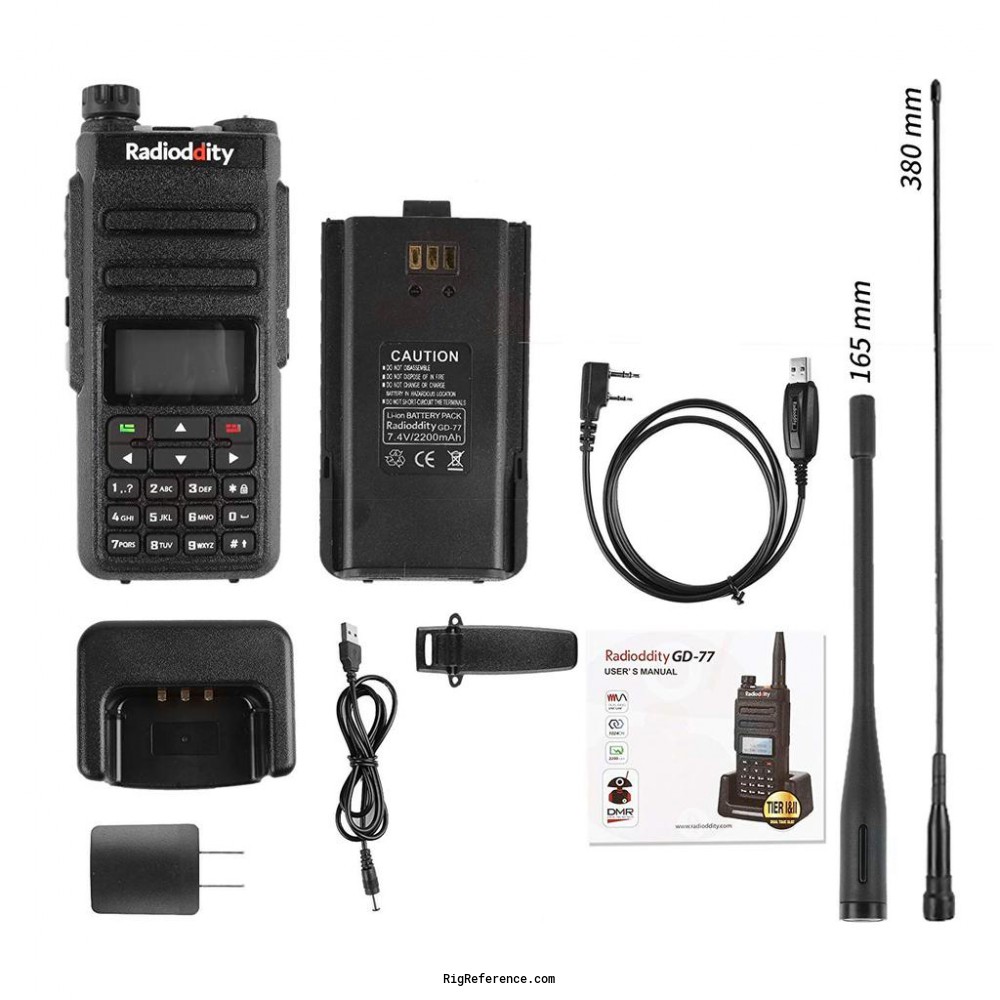

- Accessories
- -
- RigReference ID
- 6508
- MPN
- RADIODDITY-GD-000077
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radioddity GD-77. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Radioddity GD-77 in Good condition is around:
- USD 58 ~ USD 61
These estimates are based on the following prices:
