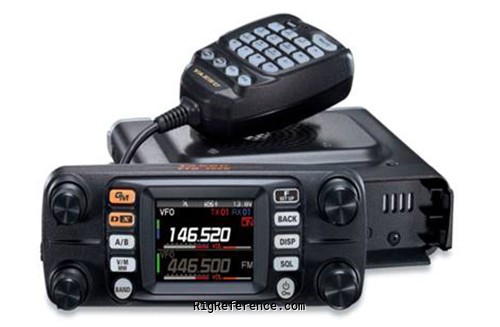

50 W dual-band transceiver with color display, built-in Bluetooth and GPS, extended RX-coverage including air band, VHF and UHF.
USA version: FTM-300DR
European version: FTM-300DE
Available in April 2020
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 1000 channels in 1 bank(s)
Receiver
- RX-range
- 108-1000 MHz (Cellular blocked in the US)
- Modulations
- AM FM N-FM DV
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 3 W Internal speaker
Transmitter
- TX-range
- 144-148 / 430-450 MHz (FTM-300DR)
144-146 / 430-440 MHz (FTM-300DE) - Modulations
- FM N-FM DV
- RF-output
- 5 / 25 / 50 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 139 × 53 × 18 mm (5.47 × 2.09 × 0.71 in) control head
- Weight
- 1.10 kg (2.4 lbs) total unit
- Form factor
- Mobile
- Manufactured
- Between 2020 and 202x in Korea
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Fusion System
CTCSS/PL
2" QVGA color TFT
Built-in Bluetooth and GPS
Wires-X Twin RX (V+V, U+U, V+U, U+V) with simultaneous DV RX on both receivers
1200/9600bd APRS modem
Voice recording
Band scope
AMS
Micro-SD slot
Detachable control head. - Accessories
- MH-85A11U Hand microphone with built-in camera
MLS-100 External speaker
SSM-85D DTMF Microphone - RigReference ID
- 6518
- MPN
- YAESU-FTM-000300DE
Manuals, diagrams and brochures
- Yaesu FTM-300DR Manual PDF - 3.33 MB, submitted by Peter Dawson
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTM-300DR/E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FTM-300DR/E is around:
- EUR 390.00
- USD 447.00 ~ USD 431.00
- AUD 691.00
These estimates are based on the following prices:
Links & tools
- Search YouTube for Yaesu FTM-300DR/E videos
- Search Google for Yaesu FTM-300DR/E information
- Search Google Images for Yaesu FTM-300DR/E
- Search Twitter for Yaesu FTM-300DR/E news
- Search Wikipedia for Yaesu FTM-300DR/E information
- Search the Boat Anchor Manual Archive (BAMA) for Yaesu FTM-300DR/E for manuals and documents (using Google)
