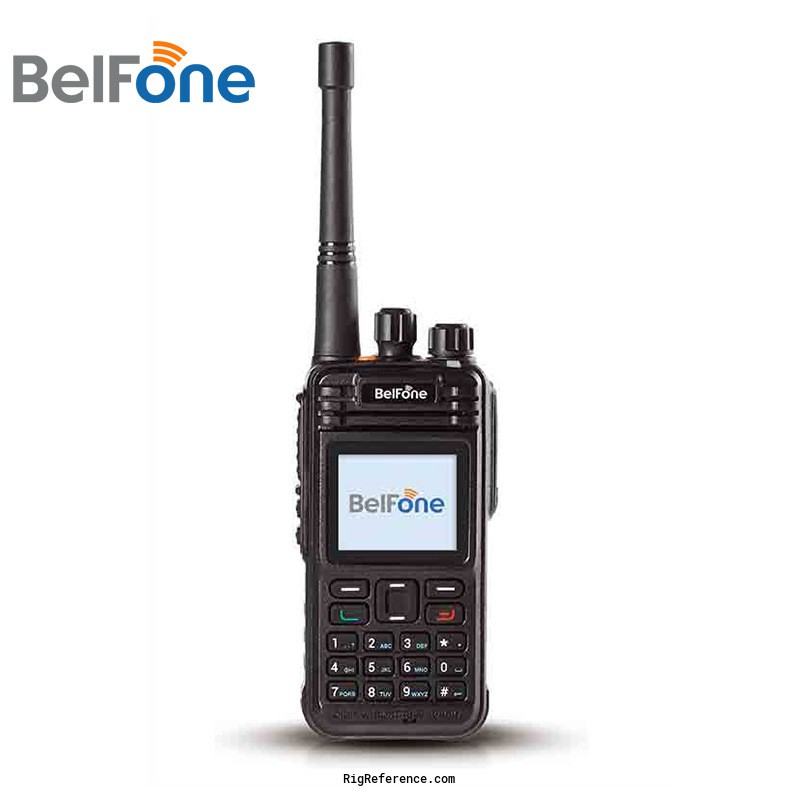

BF-TD511 offers the advantages of superior audio quality, outstanding coverage and long-lasting battery life. This IP67 rated DMR radio works with extreme durability. The virtual trunking technology greatly increases spectrum efficiency without any extra costs. It works with BelFone DMR conventional IP Connect system- SDC to release more powerful features, delivering revolutionary capabilities to keep the team safer and more efficient.
Facilitate Application
- Color LCD and keypad are used to access more functions like receiving and sending messages, address book, battery status, set up, etc.
- Support BelFone Smart IP Connect system SDC and Virtual Trunking System SVT to realize versatile dispatch functions.
Full Advantage of DMR
- DMO two timeslots save frequency licenses.
- DMR virtual trunking automatically chooses the idle slot.
Economical Radio Access to System
Support BelFone Smart IP Connect system SDC and Virtual Trunking System SVT to have versatile dispatch functions with lower cost.
Voice Recording for Dispute Resolution
Support recording and storing radio ID, channel, record time, receive and send frequency in PC for more than 400 hours. Record inquiry is easy, which is helpful for evidence retention and searching.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ±1.5ppm
- Tuning steps
- 12.5KHz/ 25KHz
- Memories
- ?
Receiver
- RX-range
- 136-174MHz / 350-390MHz / 400-480MHz / 450-520MHz
- Modulations
- -
- Sensitivity
- 5% BER: 0.25 µV
- Selectivity
- 60dB
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 136-174MHz / 350-390MHz / 400-480MHz / 450-520MHz
- Modulations
- -
- RF-output
- ?
Connections
- Antenna
- -
- Impedance
- 50ΩΩ
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 60.8 × 35.7 × 118.5 mm (2.39 × 1.41 × 4.67 in)
- Weight
- 239 gr (8.4 oz) including battery
- Form factor
- Portable
- Manufactured
- Between and in China
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- Mandown
Lone Worker
Emergency Alarms
Advanced Encryption with RC4 Technology
DMO True 2-slot, Allowing for 2 Talk Paths at 1 Frequency
Transmit Interrupt/Radio Priority for Emergency or Urgent Communication
Integrated High Precision GPS - Accessories
- Battery
Belt Clip
Hand Strap
Stubby Antenna
Charger - RigReference ID
- 6617
- MPN
- BELFONE-BF-TD000511
