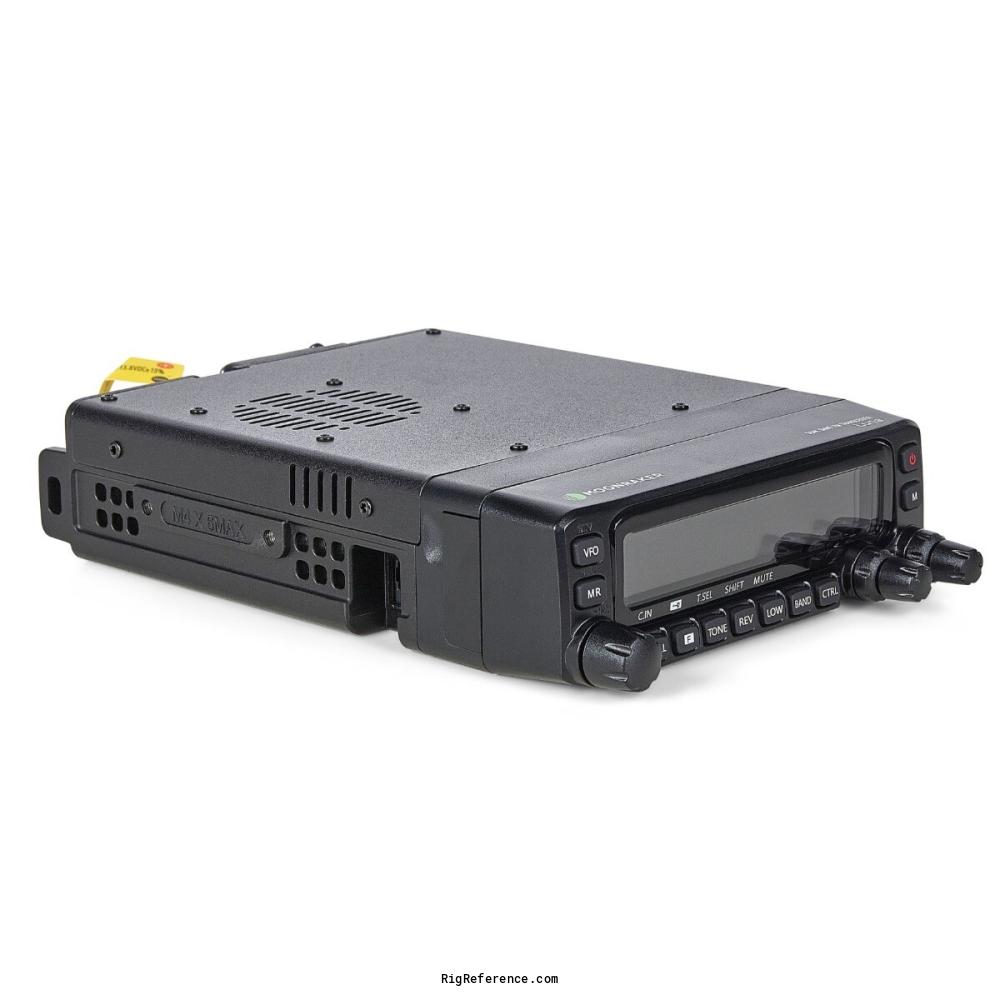

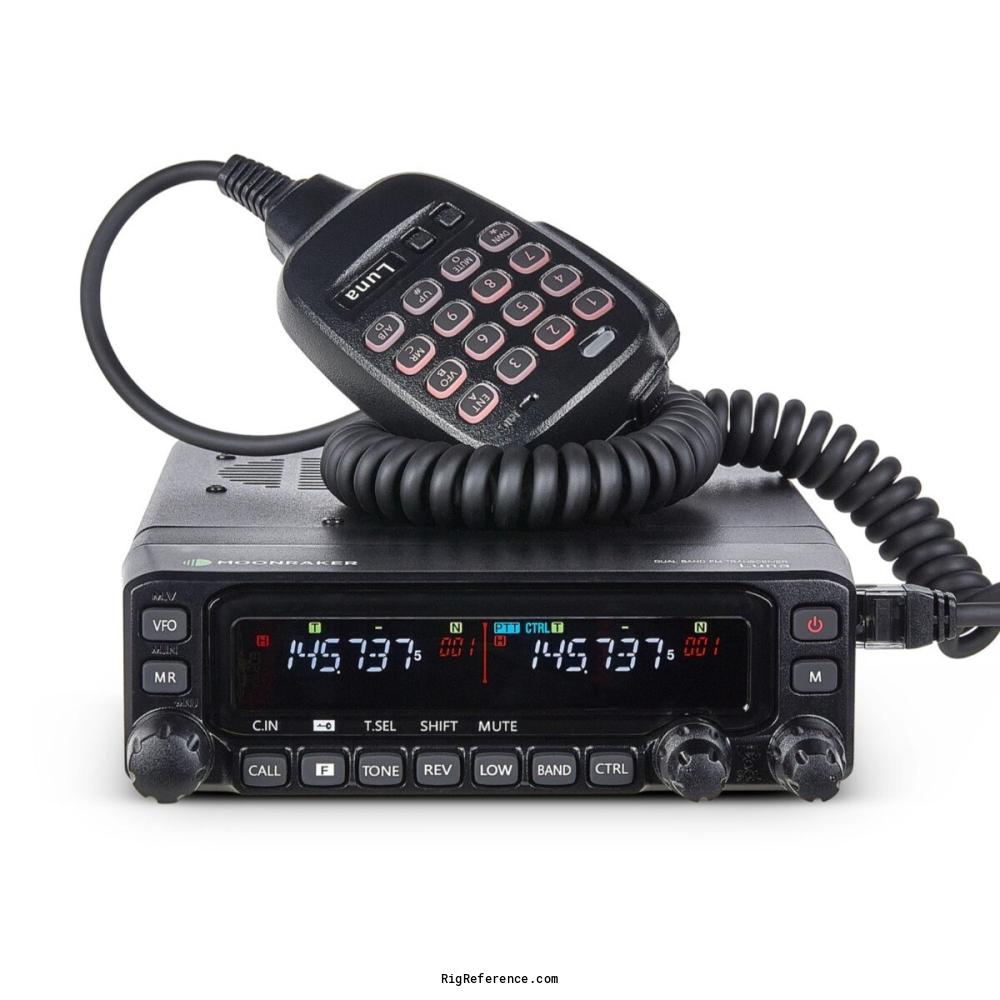

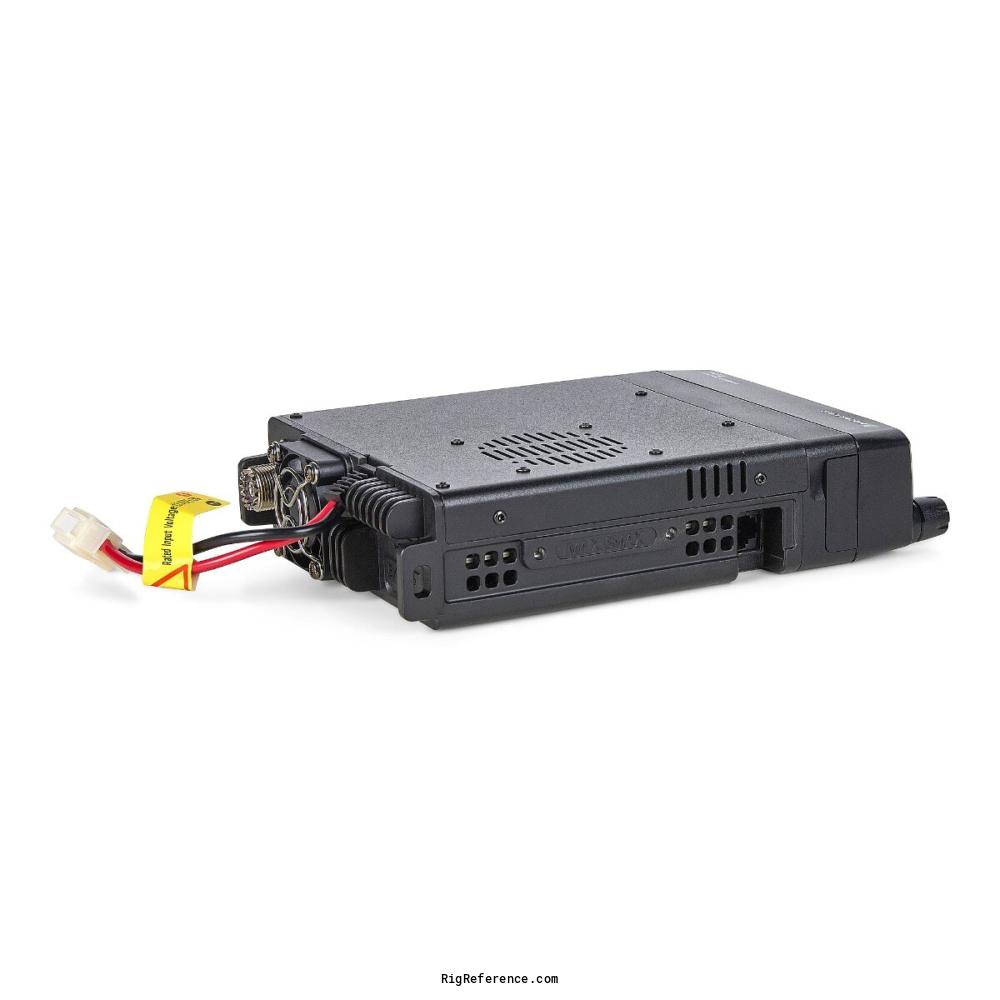

Moonraker Luna

General characteristics

HAM bands

2m  70cm

Frequency stability

±5 p.p.m. (-10 to +60 °C)

Tuning steps

5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz

Memories

200 channels in bank(s)

Receiver

RX-range

144-146 / 430-440 MHz (FM), 108-134 MHz airband (AM), 64-108 MHz FM broadcast

Modulations

AM   FM   W-FM

Sensitivity

FM (12 dB S/N): 0.2 µV (136-174 MHz and 400-520 MHz)
AM (12 dB S/N): 0.8 µV (108-134 MHz)

Selectivity

60 dB @ 12.5 kHz

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

3 W

Transmitter

TX-range

144-146 / 430-440 MHz

Modulations

FM

RF-output

VHF: 70 W, UHF: 55 W

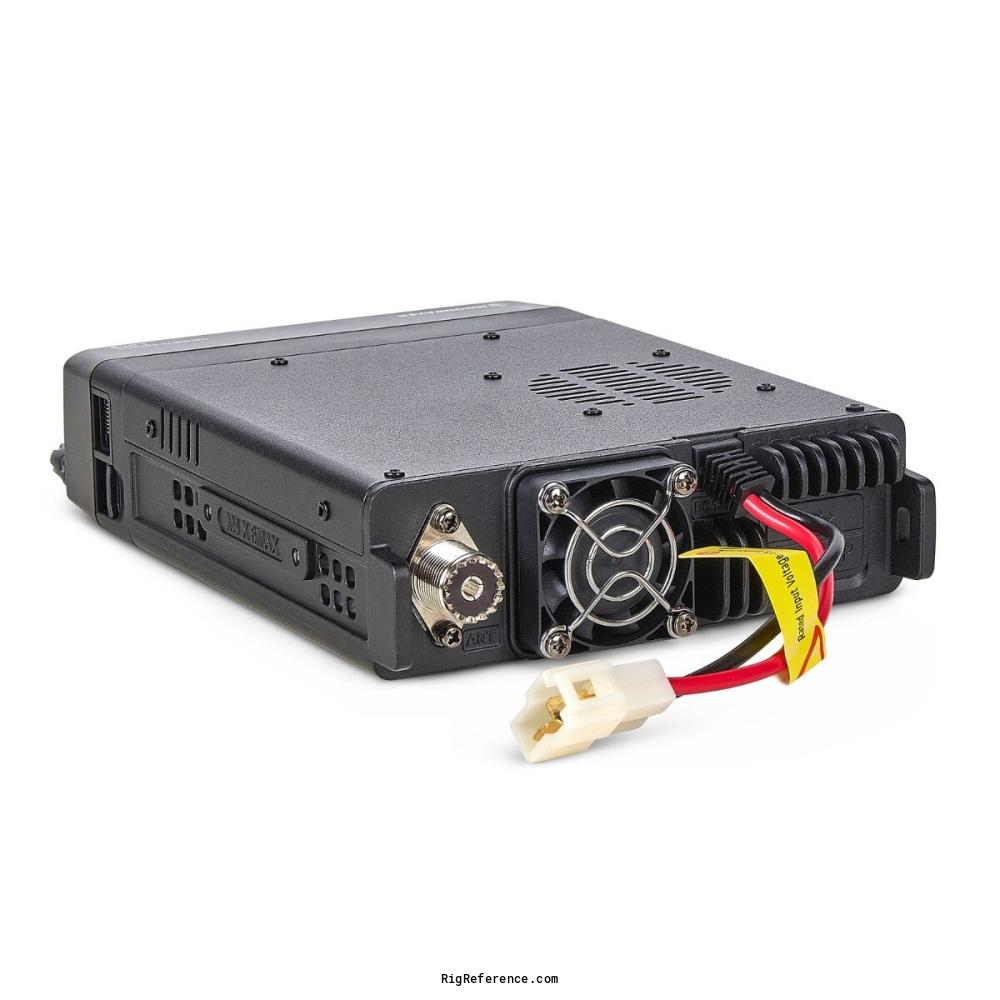

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC ±15%

Current drain RX

<0.5 A

TX

<10 A (VHF), <9 A (UHF)

Physical

Dimensions (w×h×d)

140 × 43 × 215 mm (5.51 × 1.69 × 8.46 in)

Weight

1.10 kg (2.4 lbs)

Form factor

Mobile

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

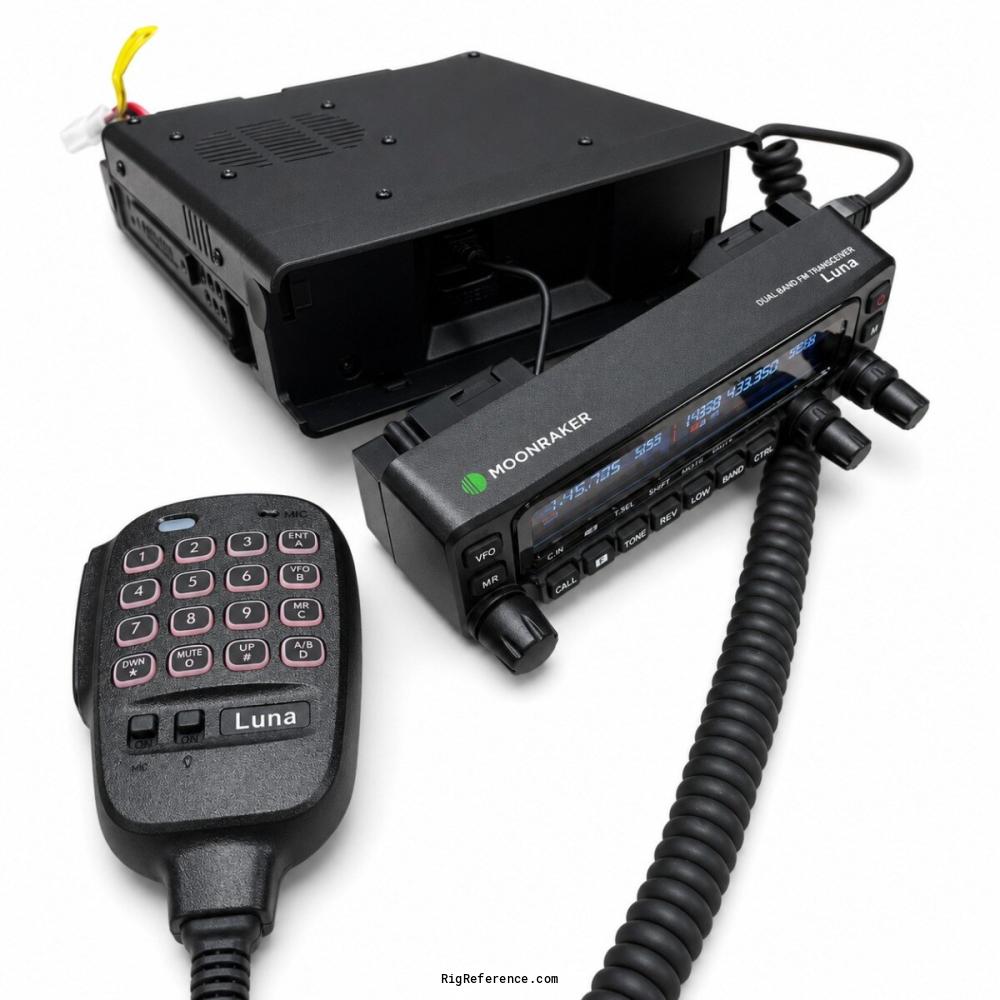

Detachable control head (remote head installation)
IP54 dust and splash resistance
CTCSS/DCS encode and decode
VOX
USB-C programming and updates
Pre-programmed with UK repeaters
Airband (AM) and FM broadcast receive

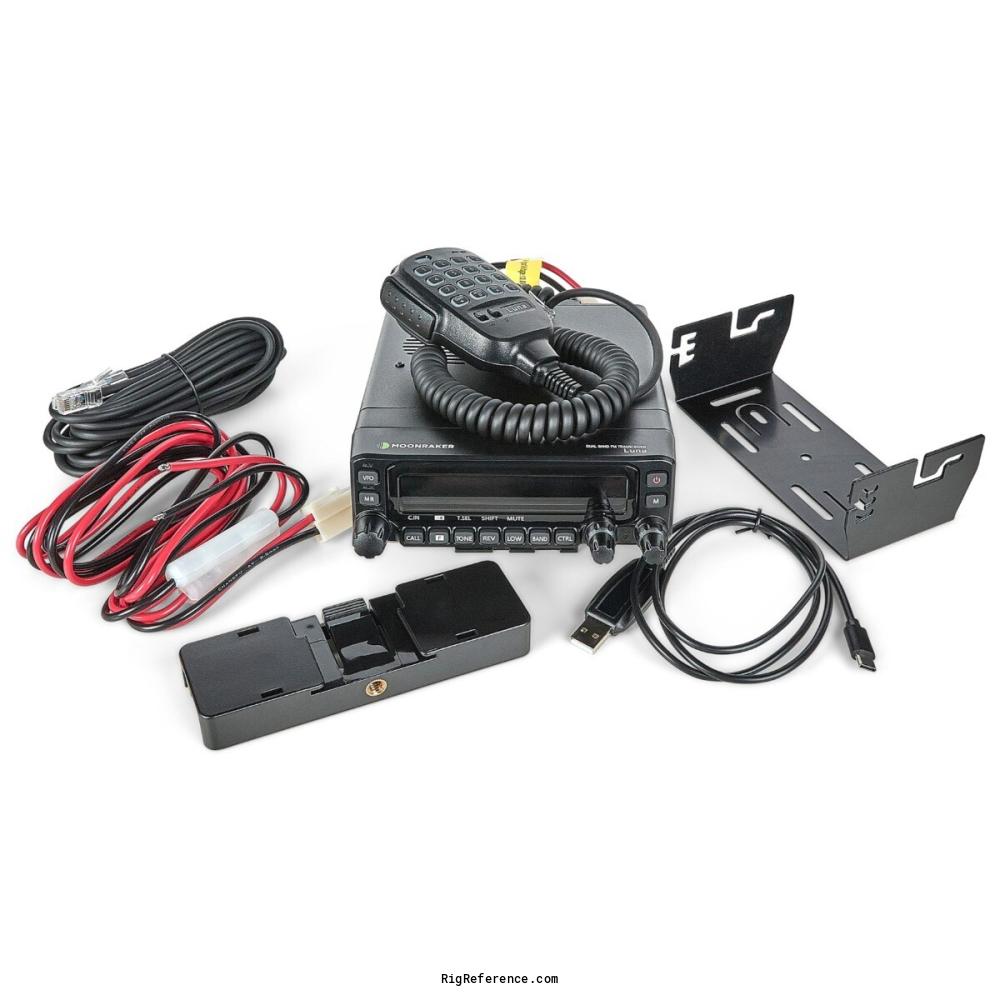

Accessories

-

RigReference ID

6671

MPN

MOONRAKER-LUNA
