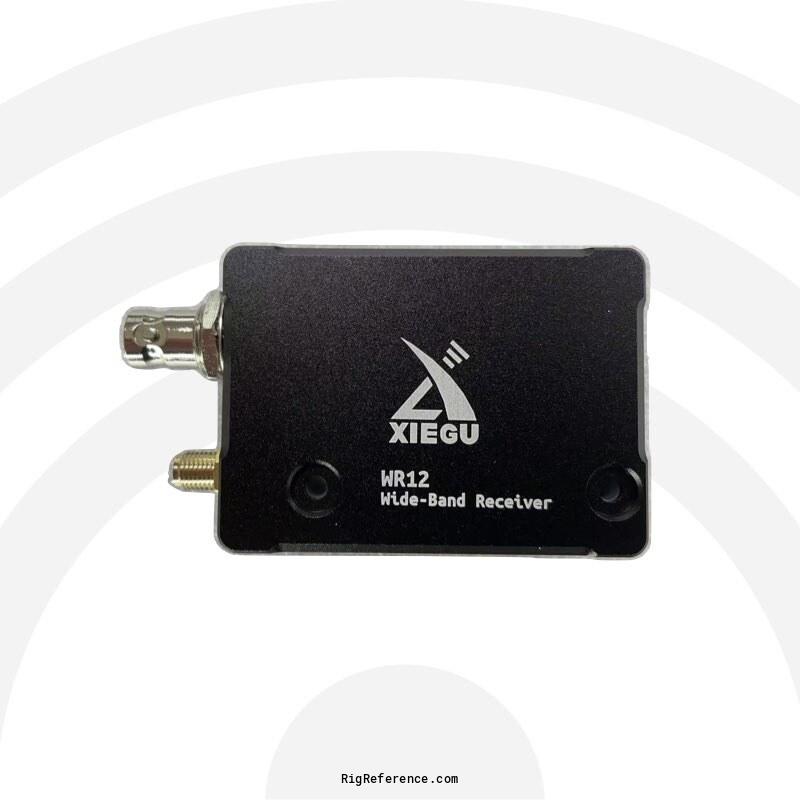

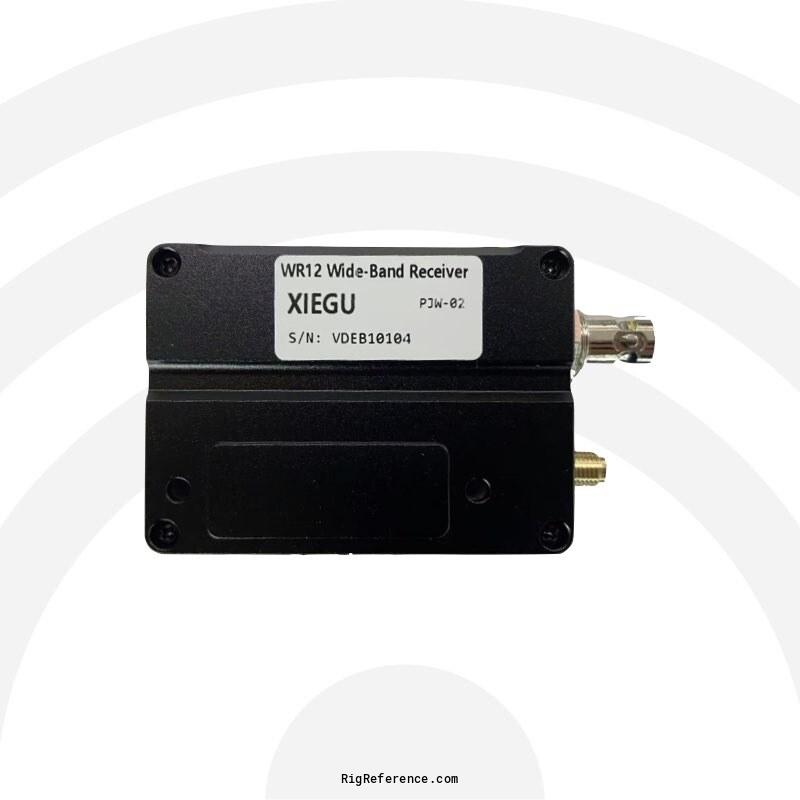

Xiegu WR12

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

54-1000 MHz

Modulations

AM   N-FM   CW   SSB

Sensitivity

AM 0.4-0.8 µV, NFM 0.3-0.7 µV, SSB 0.15-0.3 µV (10 dB S/N, depending on range)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

?

Modulations

-

RF-output

?

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

?

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

78 × 26 × 45 mm (3.07 × 1.02 × 1.77 in)

Weight

120 gr (4.2 oz)

Form factor

?

Manufactured

Between 2025 and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Receive-only wideband down-converter add-on for the X6200
Attaches to the X6200 and is controlled via USB-C
Pass-through below 54 MHz; transmit is disabled above 54 MHz

Accessories

-

RigReference ID

6684

MPN

XIEGU-WR000012
