Retevis RT90

General characteristics

HAM bands

2m  70cm

Frequency stability

±1.0 ppm

Tuning steps

?

Memories

3000 channels in bank(s)

Receiver

RX-range

136-174 / 400-480 MHz

Modulations

FM   N-FM   DMR

Sensitivity

Digital: 0.3 µV (5% BER), 0.7 µV (1% BER)
Analog: 0.35 µV / 0.22 µV (20 dB SINAD)

Selectivity

60 dB at 12.5 kHz (TIA603C / ETSI)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

5 W, distortion 3% or less

Transmitter

TX-range

136-174 / 400-480 MHz

Modulations

FM   N-FM   DMR

RF-output

VHF: 50 / 25 W
UHF: 45 / 25 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

13.8 V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

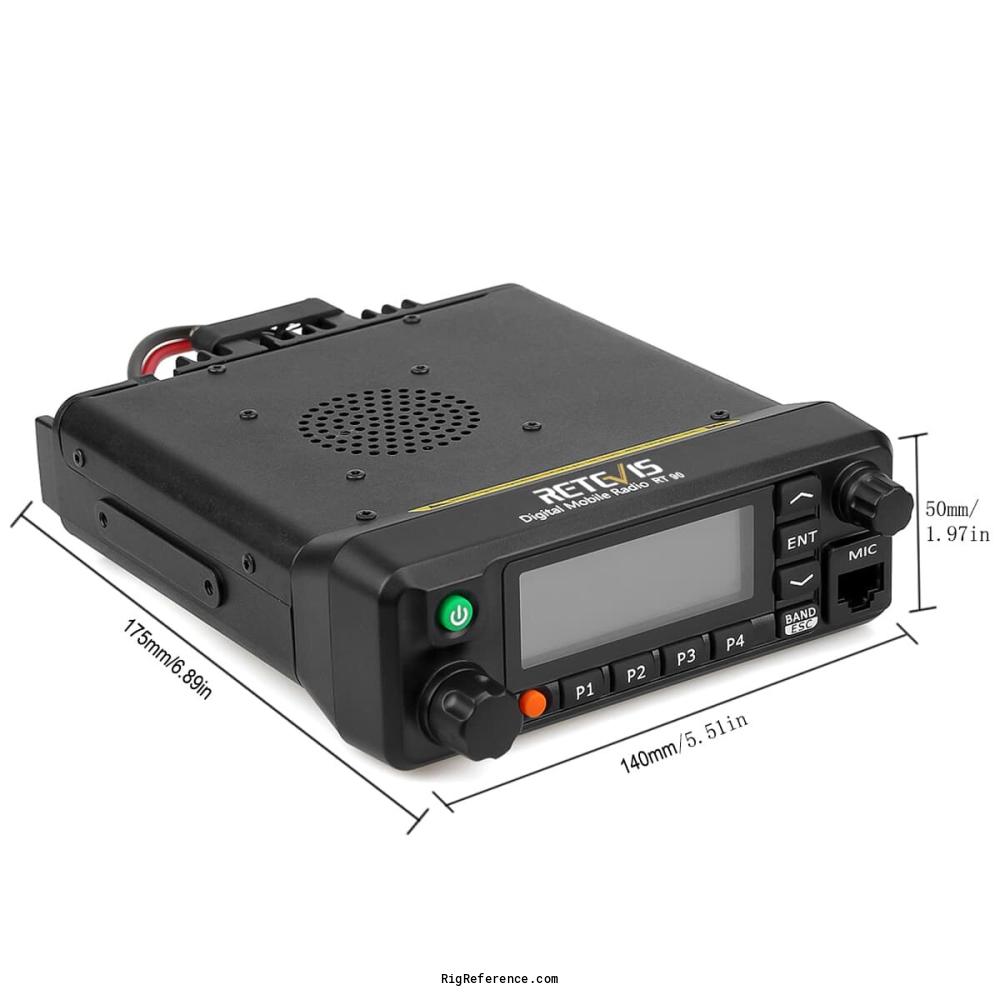

143 × 50 × 175 mm (5.63 × 1.97 × 6.89 in)

Weight

?

Form factor

Mobile

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual-band DMR / analog mobile
Built-in GPS
AMBE++ vocoder, ETSI TS 102 361-1/-2/-3
3000 channels, 120,000 contacts
MIL-STD-810C/D/E

Accessories

-

RigReference ID

6718

MPN

RETEVIS-RT000090
