Radtel RM-06

General characteristics

HAM bands

2m  70cm

Frequency stability

±1.5 ppm

Tuning steps

?

Memories

192 channels in bank(s)

Receiver

RX-range

136-174 / 400-520 MHz
RX only: 88-108 (WFM), 108-137 (AM), 174-225, 300-400 MHz (AM/FM)

Modulations

AM   FM   N-FM   W-FM

Sensitivity

136-174 / 400-520 MHz FM: 0.15 µV (12 dB SINAD)
Airband AM: 0.5 µV (10 dB S/N)
88-108 MHz WFM: 0.5 µV

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-146 (148) / 430-440 (450) MHz

Modulations

FM   N-FM

RF-output

50 / 25 / 8 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC (11.7-15.8 V)

Current drain RX

0.5 A

TX

9 A (50 W)

Physical

Dimensions (w×h×d)

160 × 38 × 135 mm (6.30 × 1.50 × 5.31 in)

Weight

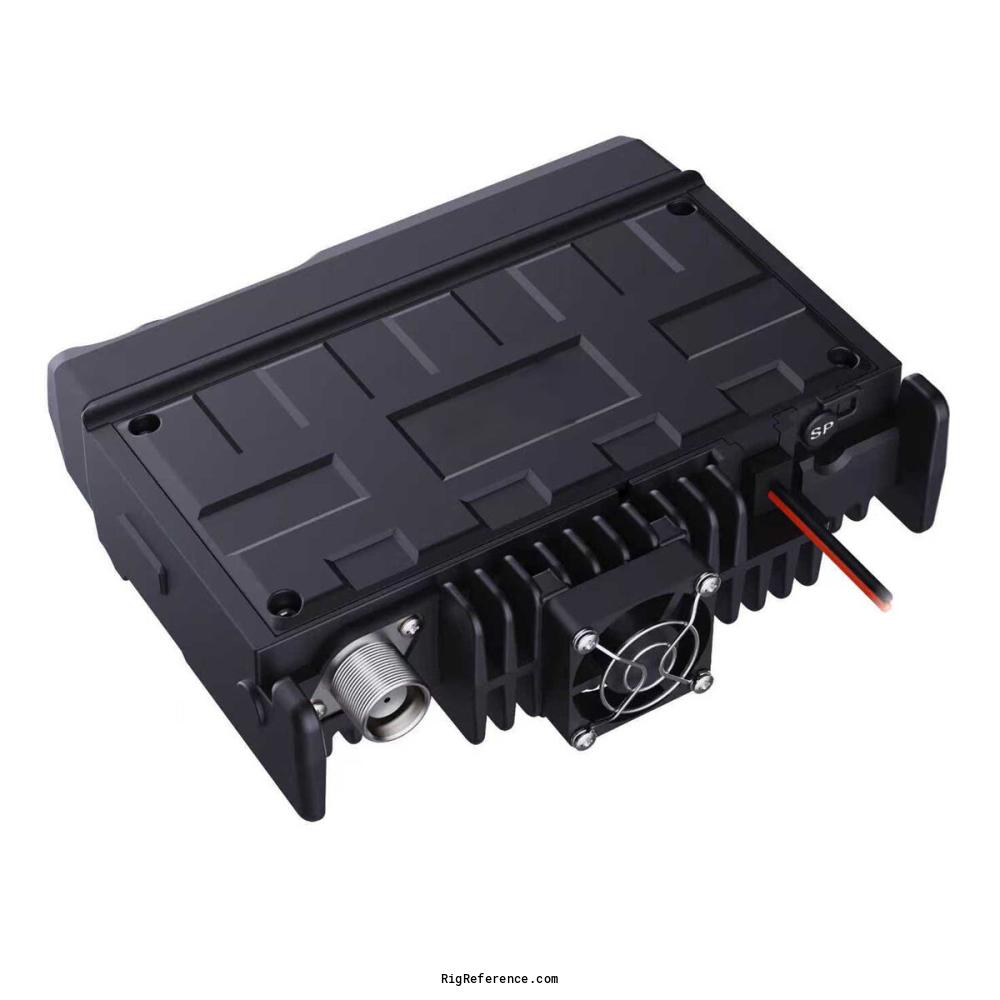

1.20 kg (2.6 lbs) Rear chassis

Form factor

Mobile

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual-band mobile, 50 W
GPS, compass, gyroscope, speedometer
APRS on independent channel (KISS / BLE)
Bluetooth app programming and audio, OTA updates
AI noise reduction
Satellite tracking
6 groups x 32 channels

Accessories

-

RigReference ID

6747

MPN

RADTEL-RM-000006
