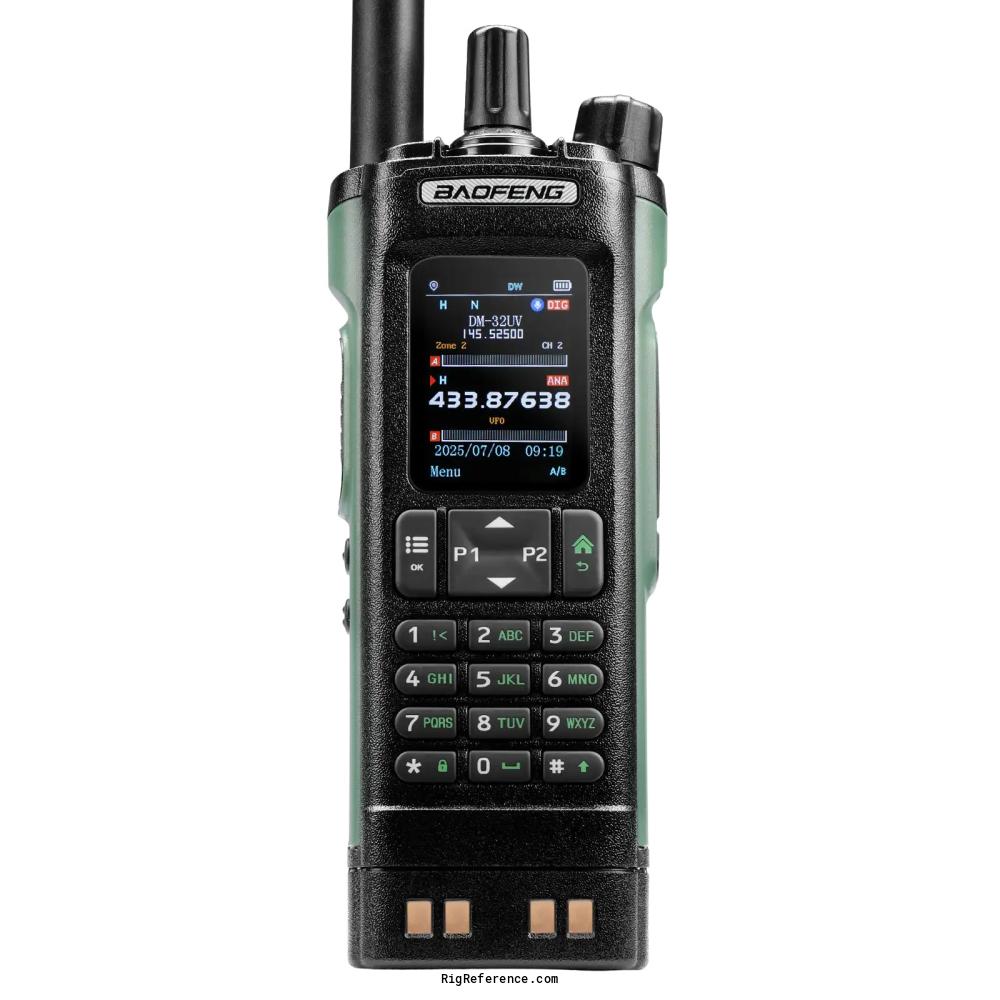

Baofeng DM-32UV
Amateur Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Battery capacity: the specifications say 2500 mAh, the product tags say 2200 mAh.
The description mentions 1.25 m reception; the specification table lists only 136-174 and 400-480 MHz receive.
Operating temperature: -10 to +55 °C
Channel spacing: 25 / 12.5 kHz
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ±2.5 ppm
- Tuning steps
- ?
- Memories
- 4000 channels in bank(s)
Receiver
- RX-range
- 136-174 / 400-480 MHz
AM airband 108-136 MHz, FM broadcast 65-108 MHz
NOAA weather - Modulations
- AM FM N-FM W-FM DMR
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 136-174 / 400-470 MHz
- Modulations
- FM N-FM DMR
- RF-output
- 10 / 4 / 1 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 7.4 V DC ±20%, Li-ion battery
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 67 × 182 × 41 mm (2.64 × 7.17 × 1.61 in)
- Weight
- 350 gr (12.4 oz)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Dual band, dual mode analog FM / DMR Tier II
Built-in GPS with digital APRS
4000 channels, 50,000 digital contacts (800 quick-access)
2" colour display, 8 selectable font colours
NOAA weather receive and alerts, airband receive
10-hour digital recording
Programmable SK1, SK2, P1, P2 keys (incl. sub-PTT)
Fall detection alarm, radio kill, SMS
Talker alias, 32 scan lists
Frequency copy (analog) - Accessories
- -
- RigReference ID
- 6834
- MPN
- BAOFENG-DM-000032UV
Manuals, diagrams and brochures
-
No manuals yet for the Baofeng DM-32UV. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the Baofeng DM-32UV
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baofeng DM-32UV. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Baofeng DM-32UV in Good condition is around:
- USD 73
These estimates are based on the following prices:
