Radioddity GD-168 Pro
Amateur Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
GD-168 with built-in GPS and APRS added. Radioddity renamed its GD-168 product listing to GD-168 Pro in October 2026.
Output power: the feature list says max. 5 W with four levels (5/4.5, 2.5, 1/0.5, 0.5 W); the specification table gives VHF 7/5/2.5/1 W and UHF 6/5/2.5/1 W. No GD-168 Pro manual is published yet; the plain GD-168 manual gives VHF 5/2.5/1/0.2 W and UHF 4.5/2.5/0.5/0.2 W.
APRS: the feature list says digital APRS RX only; Radioddity's comparison chart says digital APRS TX & RX.
Second battery: the box contents list 2500 mAh; the product summary and battery photo say 2600 mAh.
Operating temperature: -20 to +55 °C
Channel spacing: 25 / 12.5 kHz
Modulation: ±5 kHz (wide), ±2.5 kHz (narrow); 4FSK 7K60FXD (data), 7K60FXE (data + voice)
Spurious rejection: ≥70 dB (wide and narrow); blocking 84 dB
Hum & noise RX: ≥45 dB (wide), ≥40 dB (narrow); TX: ≥40 dB (wide), ≥36 dB (narrow)
Adjacent channel power: ≥70 dB (wide), ≥60 dB (narrow)
Spurious emission RX: ≤-57 dB; TX: ≤-36 dB
Audio distortion: ≤5%; bit error rate ≤3%
See also Radioddity GD-168.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ±2.0 ppm
- Tuning steps
- 5 / 6.25 kHz
- Memories
- 4000 channels in bank(s)
Receiver
- RX-range
- 136-174 / 400-480 MHz
FM broadcast - Modulations
- FM N-FM W-FM DMR
- Sensitivity
- Analog (12 dB SINAD): ≤0.25 µV (wide), ≤0.35 µV (narrow)
Digital: 0.3 µV / -117.4 dBm (BER 5%), 0.7 µV / -110 dBm (BER 1%) - Selectivity
- Adjacent channel: ≥70 dB (wide), ≥60 dB (narrow)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1 W (16 ohm)
Transmitter
- TX-range
- 136-174 / 400-480 MHz
- Modulations
- FM N-FM DMR
- RF-output
- VHF: 7 / 5 / 2.5 / 1 W
UHF: 6 / 5 / 2.5 / 1 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 7.4 V DC ±20% Li-ion batteries 1800 mAh and 2500/2600 mAh (both supplied)
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 61 × 129 × 39 mm (2.40 × 5.08 × 1.54 in) With battery pack
- Weight
- 282 gr (10.0 oz) With battery pack and antenna
- Form factor
- Handheld
- Manufactured
- Between 2026 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Dual band, dual mode analog FM / DMR Tier I & II
Built-in GPS
APRS: digital & analog APRS TX, digital APRS RX
4000 channels, 500,000 contacts, 10,000 talk groups
1.77" colour TFT display
Satellite communication support
TX and RX noise reduction
AES256 and ARC4 encryption
Roaming, talker alias, dual mode recording
Two programmable keys
USB-C charging and programming
Supplied with two batteries and two antennas - Accessories

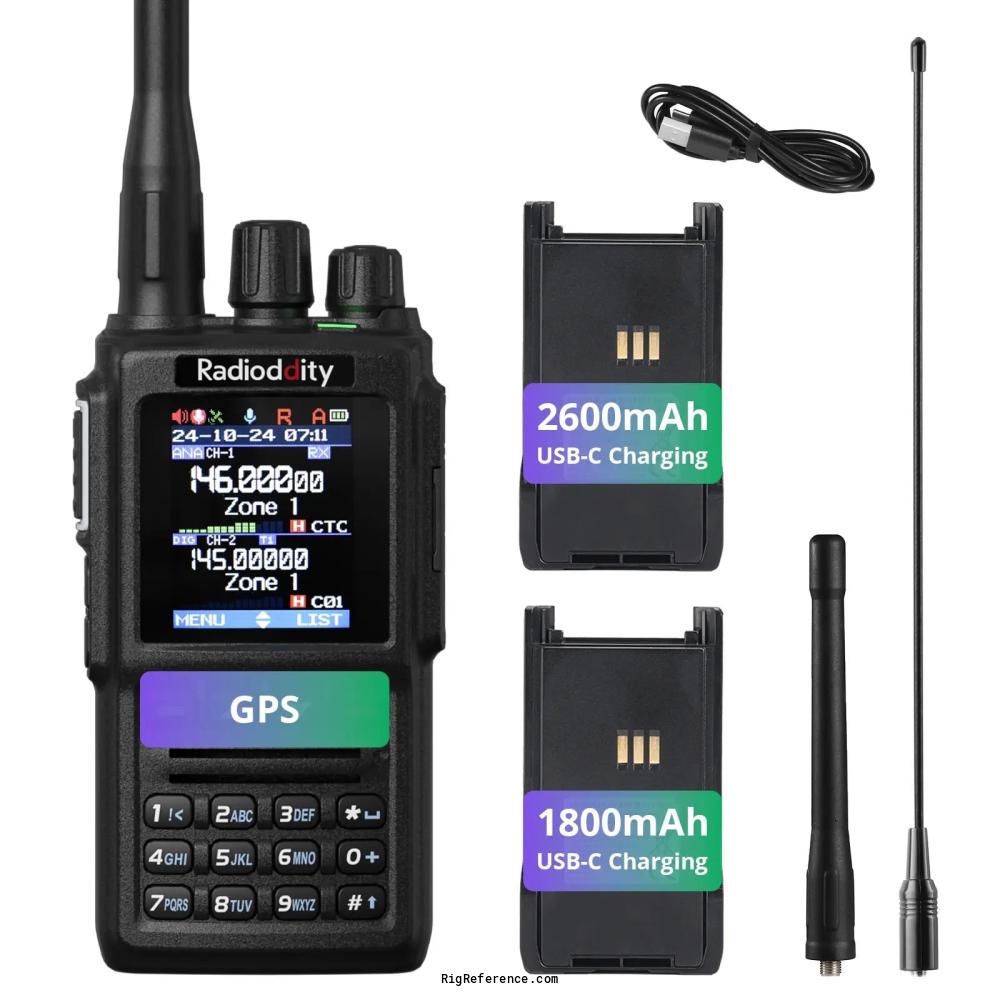

- Supplied: 1800 mAh and 2500/2600 mAh batteries, standard antenna, 15" long antenna, desktop charger, USB-C cable, adaptor, belt clip, user manual
- RigReference ID
- 6857
- MPN
- RADIODDITY-GD-000168-PRO
