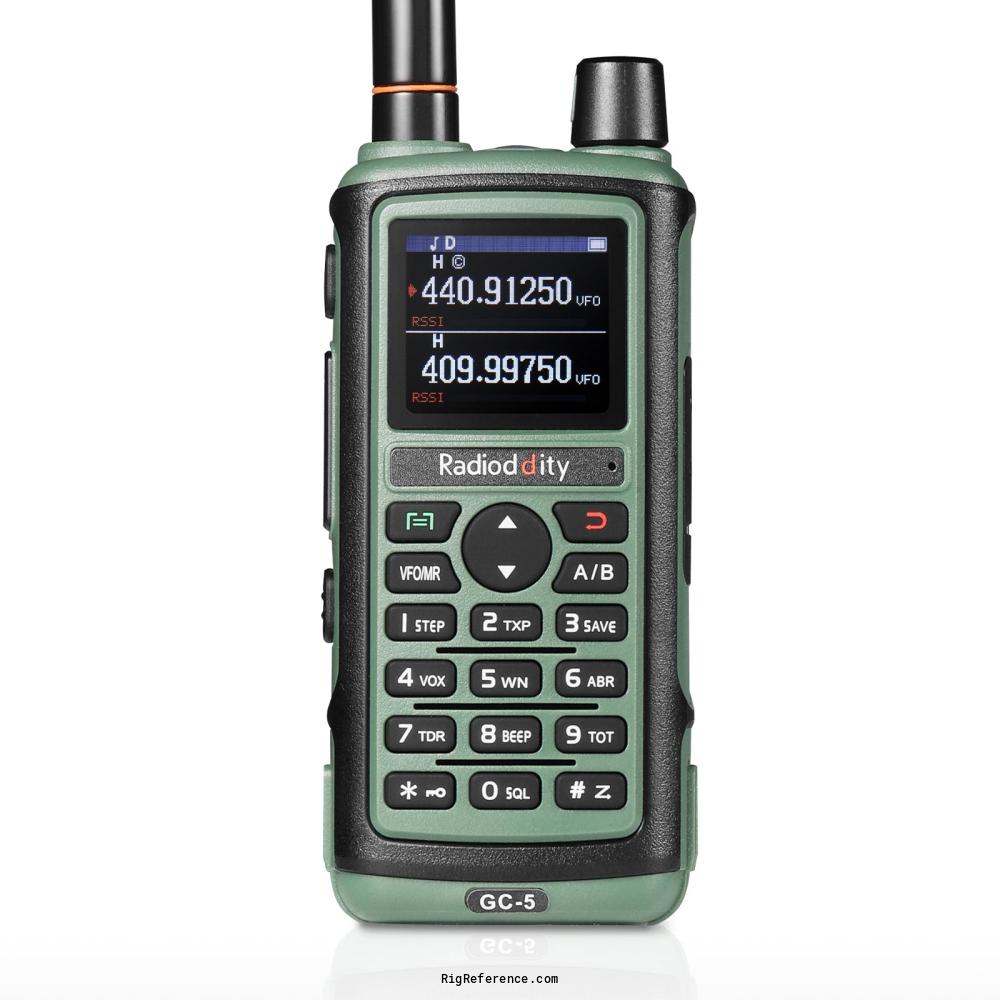

Radioddity GC-5

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 kHz

Memories

999 channels in bank(s)

Receiver

RX-range

US: 144-148 / 420-450 MHz, FM broadcast 78-108 MHz, NOAA 161.650-163.275 MHz
EU: 144-146 / 430-440 MHz, FM broadcast 78-108 MHz

Modulations

FM   N-FM   W-FM

Sensitivity

0.25 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1 W (16 ohm)

Transmitter

TX-range

US: 144-148 / 420-450 MHz
EU: 144-146 / 430-440 MHz

Modulations

FM   N-FM

RF-output

5 / 2 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

7.4 V DC ±10%, Li-ion battery 1800 mAh

Current drain RX

≤380 mA

TX

≤1700 mA

Physical

Dimensions (w×h×d)

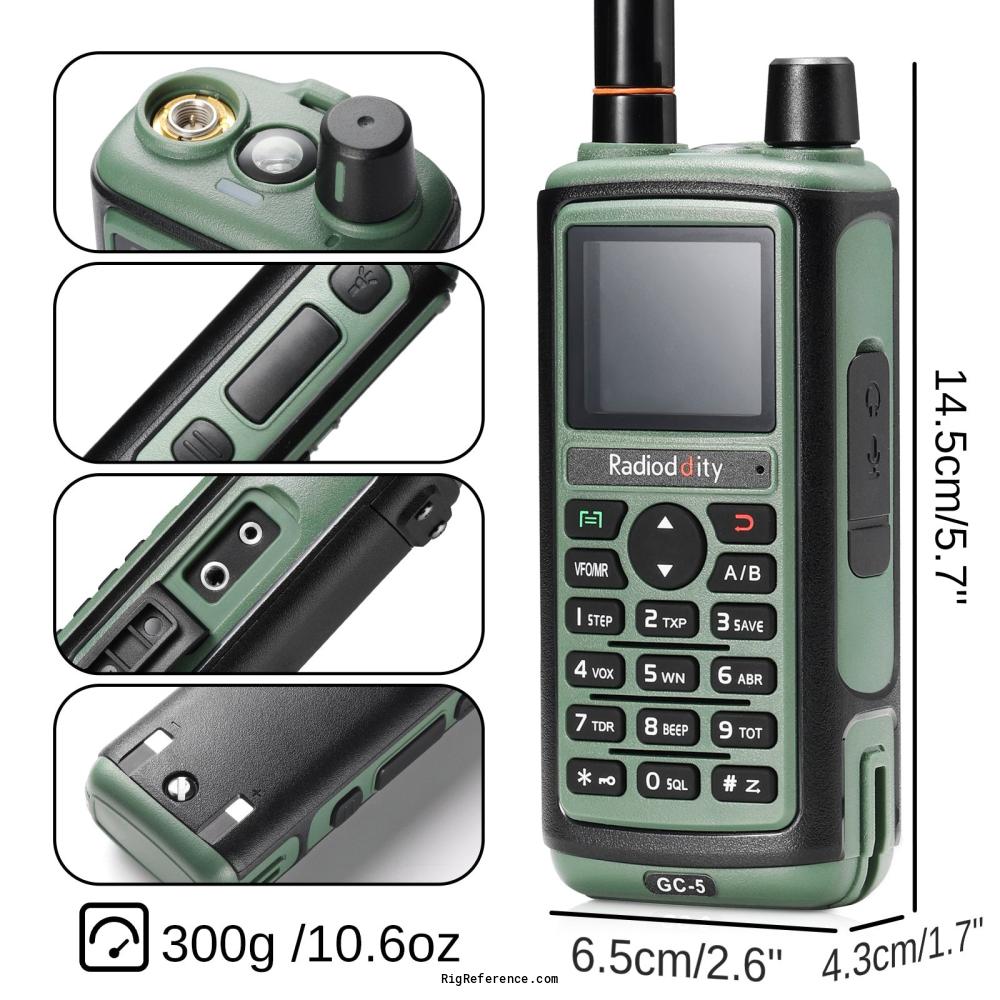

65 × 145 × 43 mm (2.56 × 5.71 × 1.69 in) As shown in the official product image

Weight

300 gr (10.6 oz)

Form factor

Handheld

Manufactured

Between 20xx and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual band 2 m / 70 cm, 5/2 W
1.8" colour display, dual watch
Wireless frequency copy from compatible radios
999 channels
Custom power-on picture
NOAA weather receive (US), FM radio
DTMF, VOX, roger beep, LED flashlight
CHIRP supported
2-pin Kenwood jack

Accessories

-

RigReference ID

6837

MPN

RADIODDITY-GC-000005

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Radioddity GC-5. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radioddity GC-5. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Radioddity GC-5 in Good condition is around:

• USD 22
