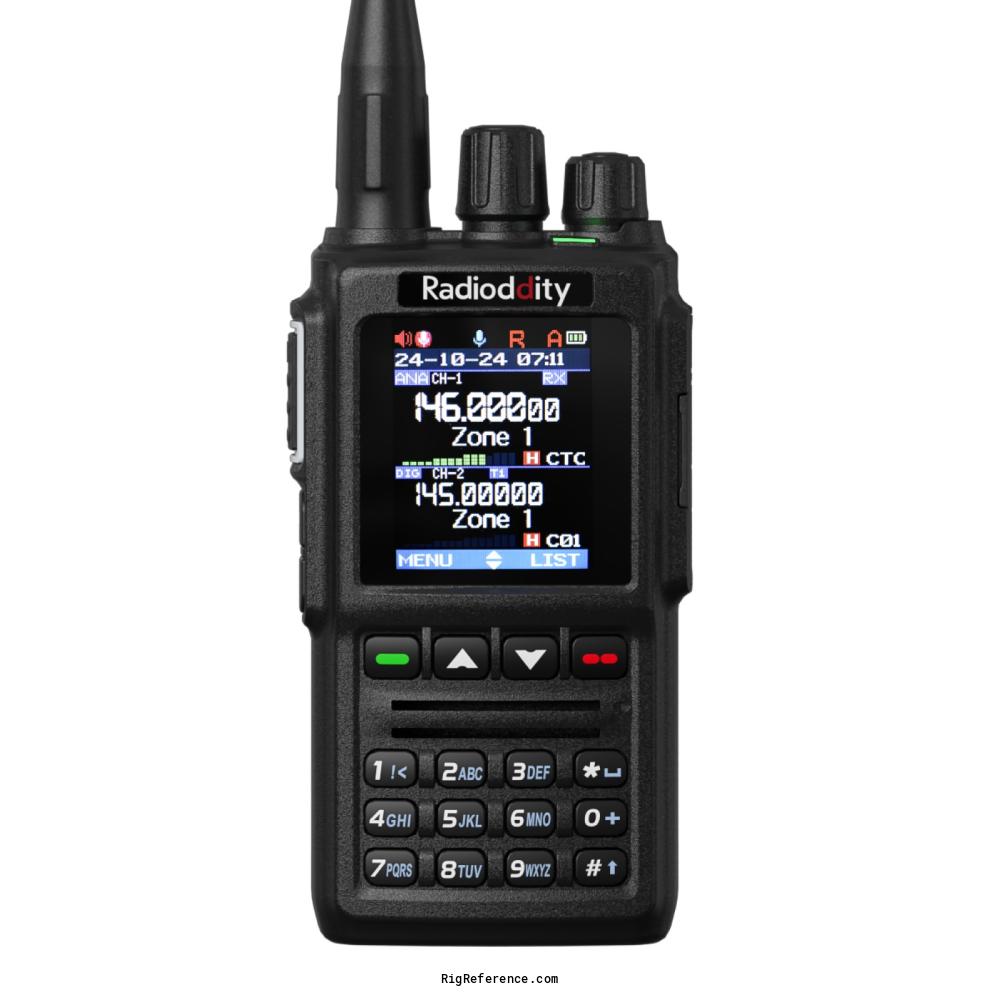

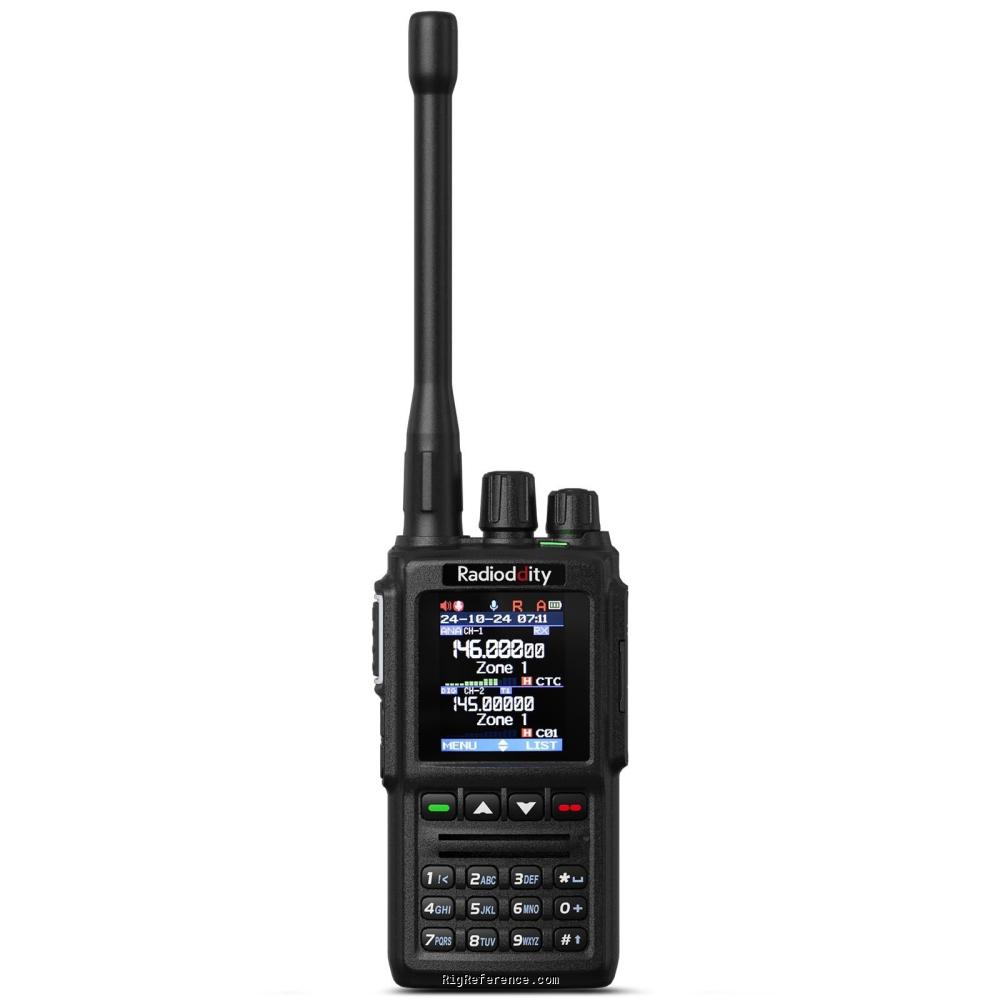

Radioddity GD-168
Amateur Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Output power: the feature list says max. 5 W with four levels (5/4.5, 2.5, 1/0.5, 0.5 W); the specification table gives VHF 7/5/2.5/1 W and UHF 6/5/2.5/1 W.
Operating temperature: -20 to +55 °C
Channel spacing: 25 / 12.5 kHz
Modulation: ±5 kHz (wide), ±2.5 kHz (narrow); 4FSK 7K60FXD (data), 7K60FXE (data + voice)
Spurious rejection: ≥65 dB (wide), ≥60 dB (narrow); blocking 84 dB
Hum & noise RX: ≥45 dB (wide), ≥40 dB (narrow); TX: ≥40 dB (wide), ≥36 dB (narrow)
Adjacent channel power: ≥70 dB (wide), ≥60 dB (narrow)
Spurious emission TX: ≤-36 dB
Audio distortion: ≤5%
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ±1.5 ppm
- Tuning steps
- 5 / 6.25 kHz
- Memories
- 4000 channels in bank(s)
Receiver
- RX-range
- 136-174 / 400-480 MHz
FM broadcast - Modulations
- FM N-FM W-FM DMR
- Sensitivity
- Analog (12 dB SINAD): ≤0.25 µV (wide), ≤0.35 µV (narrow)
Digital: 0.3 µV / -117.4 dBm (BER 5%), 0.7 µV / -110 dBm (BER 1%) - Selectivity
- Adjacent channel: ≥65 dB (wide), ≥60 dB (narrow)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1 W (16 ohm)
Transmitter
- TX-range
- 136-174 / 400-480 MHz
- Modulations
- FM N-FM DMR
- RF-output
- VHF: 7 / 5 / 2.5 / 1 W
UHF: 6 / 5 / 2.5 / 1 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 7.4 V DC ±20% Li-ion batteries 1800 mAh and 2600 mAh (both supplied)
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 53.5 × 103.5 × 35.5 mm (2.11 × 4.07 × 1.40 in) With battery pack
- Weight
- 220 gr (7.8 oz) With battery pack and antenna
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Dual band, dual mode analog FM / DMR Tier I & II
4000 channels, 500,000 contacts, 10,000 talk groups
1.77" colour TFT display
APRS: digital & analog APRS TX, digital APRS RX
Satellite communication support
TX and RX background noise reduction
AES256 and ARC4 encryption
Roaming, talker alias, dual mode recording
Two programmable keys
USB-C charging and programming
Supplied with two batteries and two antennas - Accessories
- Supplied: 1800 mAh and 2600 mAh batteries, standard antenna, 15" long antenna, desktop charger, USB-C cable, adaptor, belt clip
- RigReference ID
- 6838
- MPN
- RADIODDITY-GD-000168
