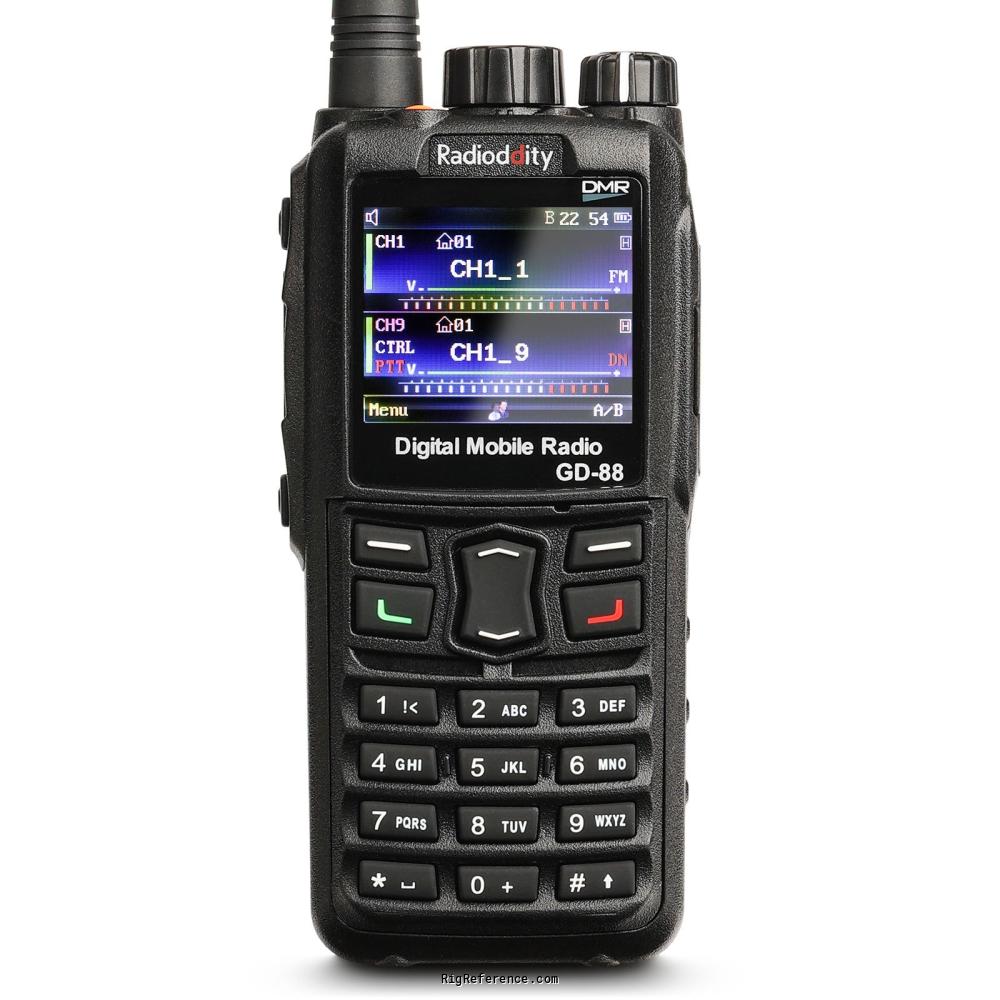

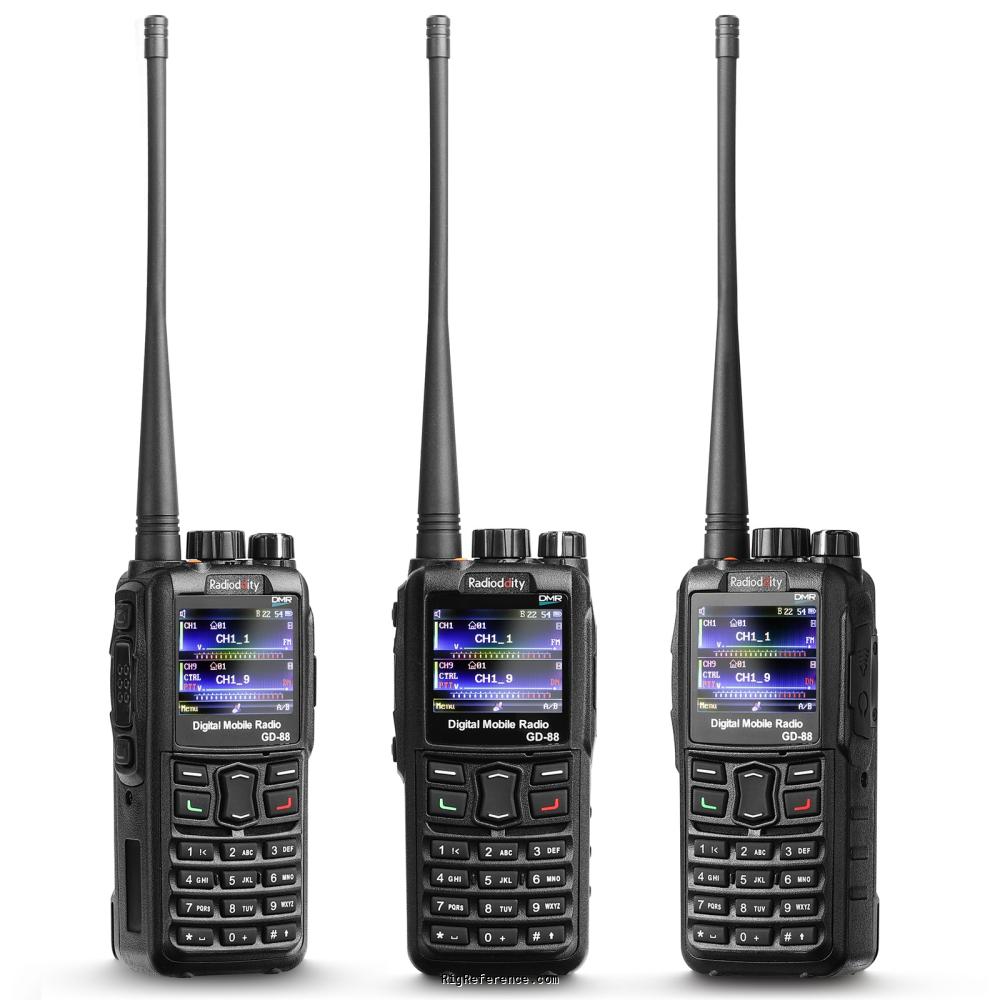

Radioddity GD-88
Amateur Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
FCC ID: 2AN62-GD88
Battery life: up to 48 h standby, 15 h analog use, 23 h digital use.
Deviation: VHF ≤±5 kHz @ 12.5 kHz, UHF ≤±7 kHz @ 25 kHz (as published)
Accessory jack: 2-pin Kenwood (K1)
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 4000 channels in 16 bank(s)
Receiver
- RX-range
- 136-174 / 400-480 MHz
FM broadcast - Modulations
- FM N-FM W-FM DMR
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 136-174 / 400-480 MHz
- Modulations
- FM N-FM DMR
- RF-output
- 7 / 2.5 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 7.4 V Li-ion battery, 3000 mAh
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 55 × 125 × 35 mm (2.17 × 4.92 × 1.38 in)
- Weight
- 330 gr (11.6 oz)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Dual band, dual mode analog FM / DMR Tier I & II dual time slot
Dual VFO, dual standby, dual transmit
GPS with APRS
Cross-band repeater (incl. analog to digital)
Same-frequency repeater (SFR) mode using the second time slot
4000 channels (16 zones), 300,000 contacts
2" colour TFT display
AES256 encryption
IP54
Man-down alert, roaming, recording
2-in-1 desktop charger - Accessories
- -
- RigReference ID
- 6839
- MPN
- RADIODDITY-GD-000088
Manuals, diagrams and brochures
-
No manuals yet for the Radioddity GD-88. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the Radioddity GD-88
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radioddity GD-88. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Radioddity GD-88 in Good condition is around:
- USD 182
These estimates are based on the following prices:
