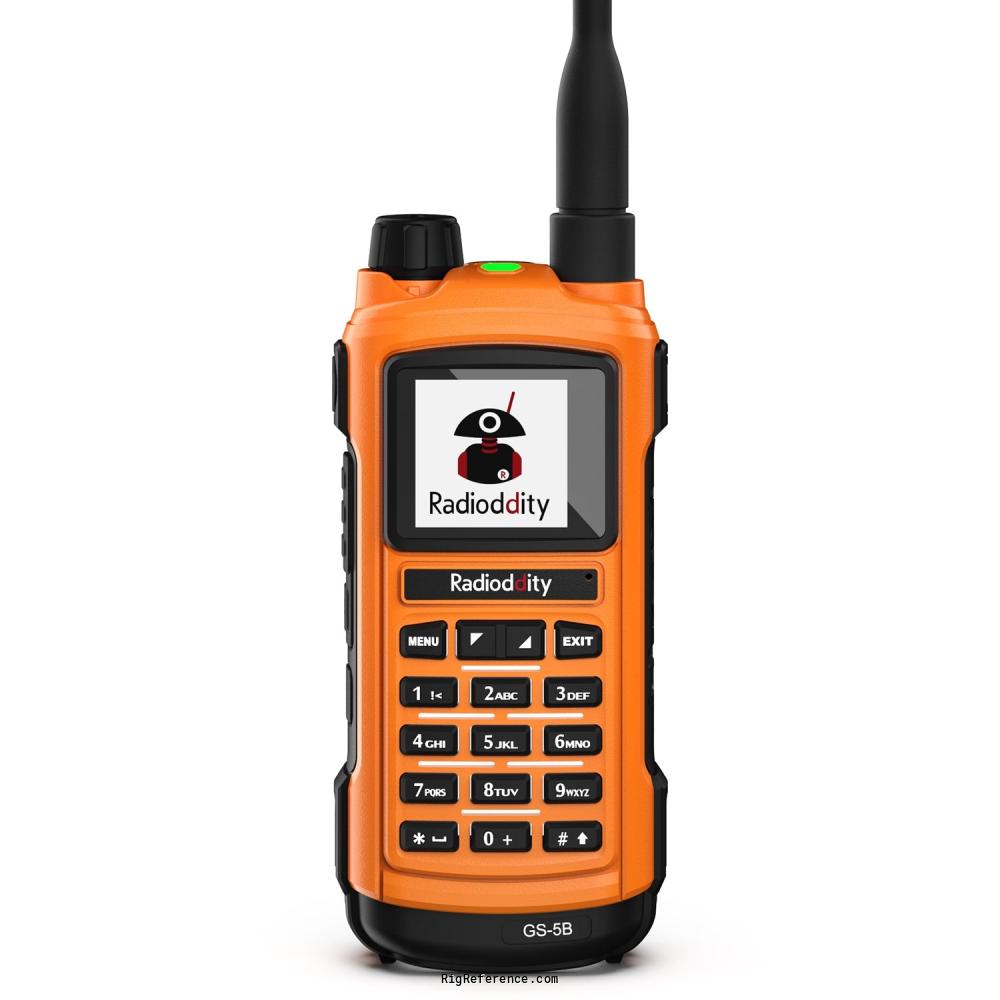

Radioddity GS-5B
Amateur Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Output power: the specifications say 5 / 1 W; the product title says 8 W.
Channels: the specifications say 128; the product title says 512.
Battery and desktop charger have a Micro-USB charging port; the product title mentions USB-C.
Colour: orange. Supplied with programming cable, 8.9" high-gain antenna and air acoustic earpiece.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 kHz
- Memories
- 128 channels in bank(s)
Receiver
- RX-range
- 87-108 / 136-174 / 400-520 MHz
- Modulations
- FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1 W
Transmitter
- TX-range
- 136-174 / 400-520 MHz
- Modulations
- FM
- RF-output
- 5 / 1 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 7.4 V Li-ion battery, 2000 mAh
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 60 × 135 × 40 mm (2.36 × 5.31 × 1.57 in)
- Weight
- 270 gr (9.5 oz)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Dual band VHF/UHF
Dual PTT (transmit on A or B without switching)
Bluetooth app programming, manual keypad programming, CHIRP supported
S-meter
Search frequency mode (detects nearby frequency and tones)
Channel name and frequency shown together
LED flashlight with SOS strobe
51 CTCSS / 211 DCS, DTMF, ANI, PTT ID
1750 Hz tone
FM radio - Accessories
- -
- RigReference ID
- 6842
- MPN
- RADIODDITY-GS-000005B
Manuals, diagrams and brochures
-
No manuals yet for the Radioddity GS-5B. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the Radioddity GS-5B
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radioddity GS-5B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Radioddity GS-5B in Good condition is around:
- USD 87
These estimates are based on the following prices:
