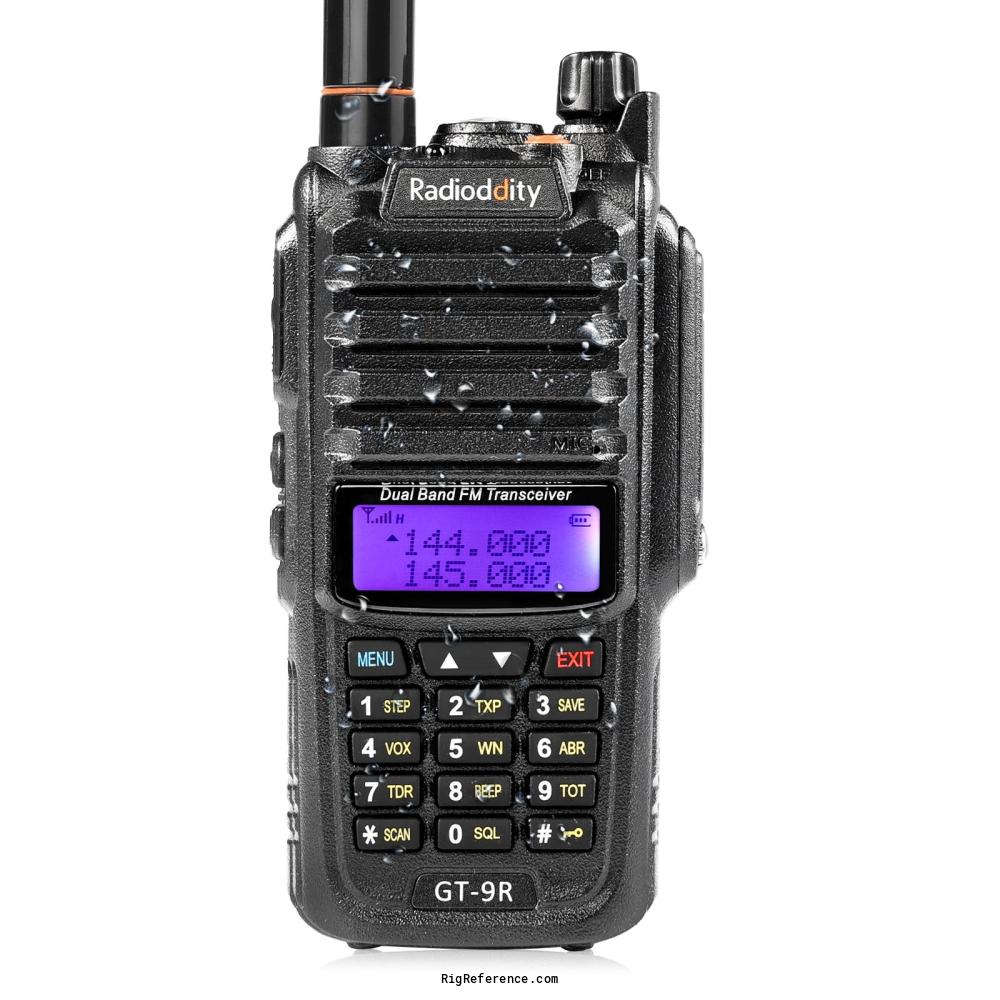

Radioddity GT-9R
Amateur Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
EU version.
Operating temperature: -20 to +60 °C

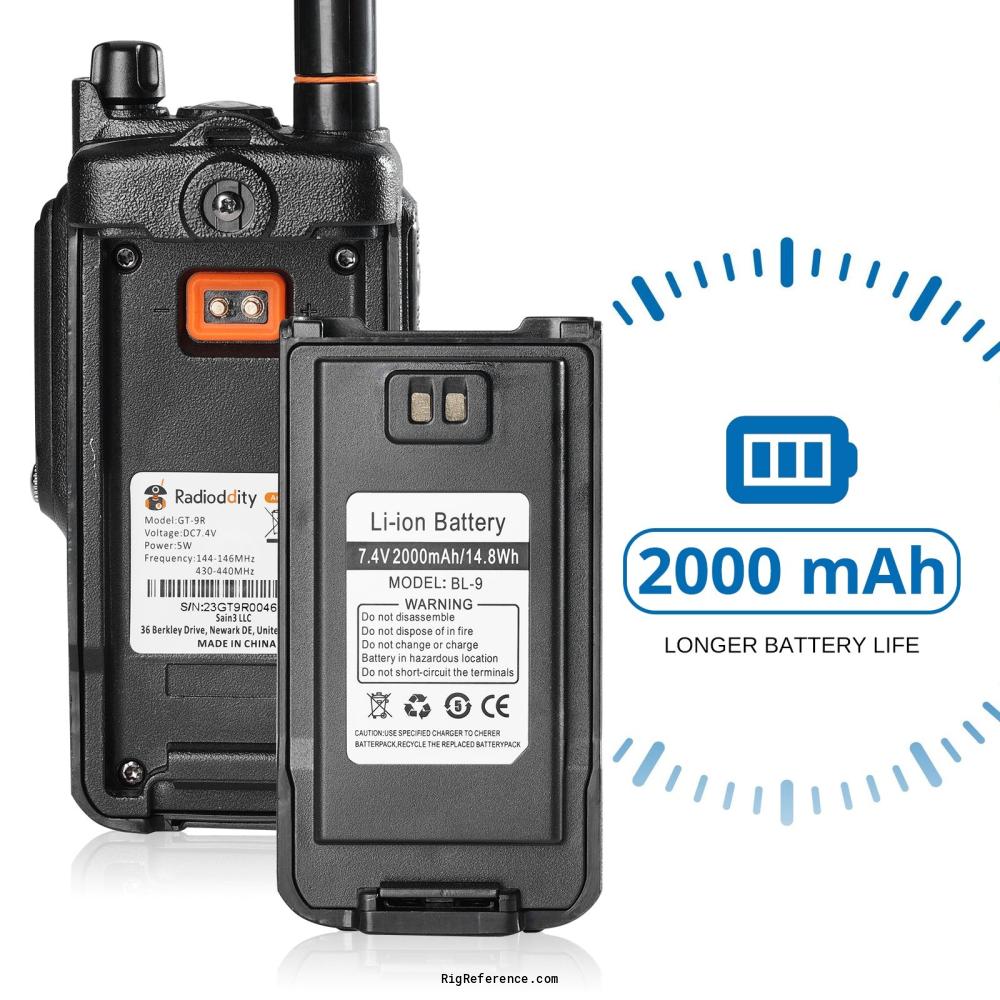

Battery: the specifications say 2000 mAh (BL-9); the box contents list a 1800 mAh battery.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- 2.5 ppm
- Tuning steps
- 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 kHz
- Memories
- 128 channels in bank(s)
Receiver
- RX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- RF-output
- 5 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Li-ion battery BL-9, 2000 mAh
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 64 × 131 × 32 mm (2.52 × 5.16 × 1.26 in)
- Weight
- 280 gr (9.9 oz)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Dual band 2 m / 70 cm, 5 W, EU frequency range
IP67 dust- and waterproof (1 m for 30 min)
Tri-colour display
128 channels
Simplex or semi-duplex - Accessories
- -
- RigReference ID
- 6843
- MPN
- RADIODDITY-GT-000009R
Manuals, diagrams and brochures
-
No manuals yet for the Radioddity GT-9R. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the Radioddity GT-9R
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radioddity GT-9R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Radioddity GT-9R is around:
- USD 203 ~ USD 377
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
