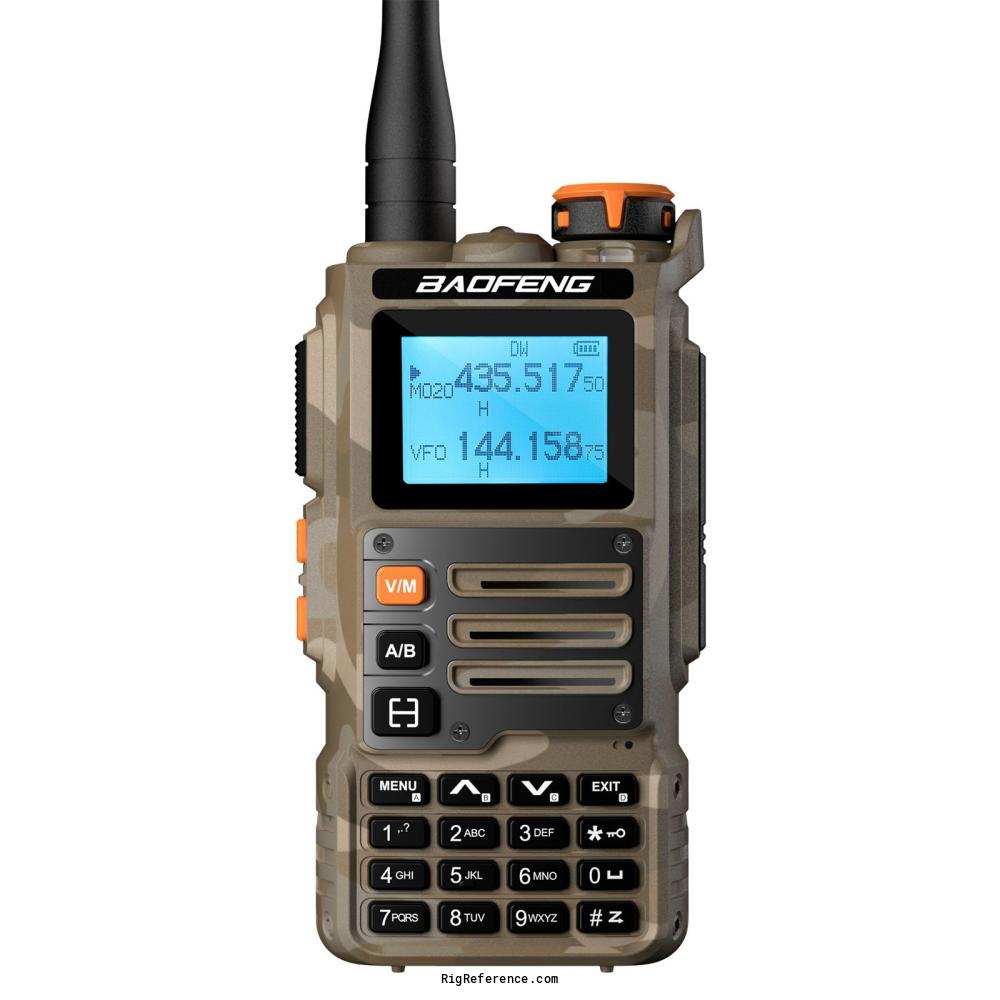

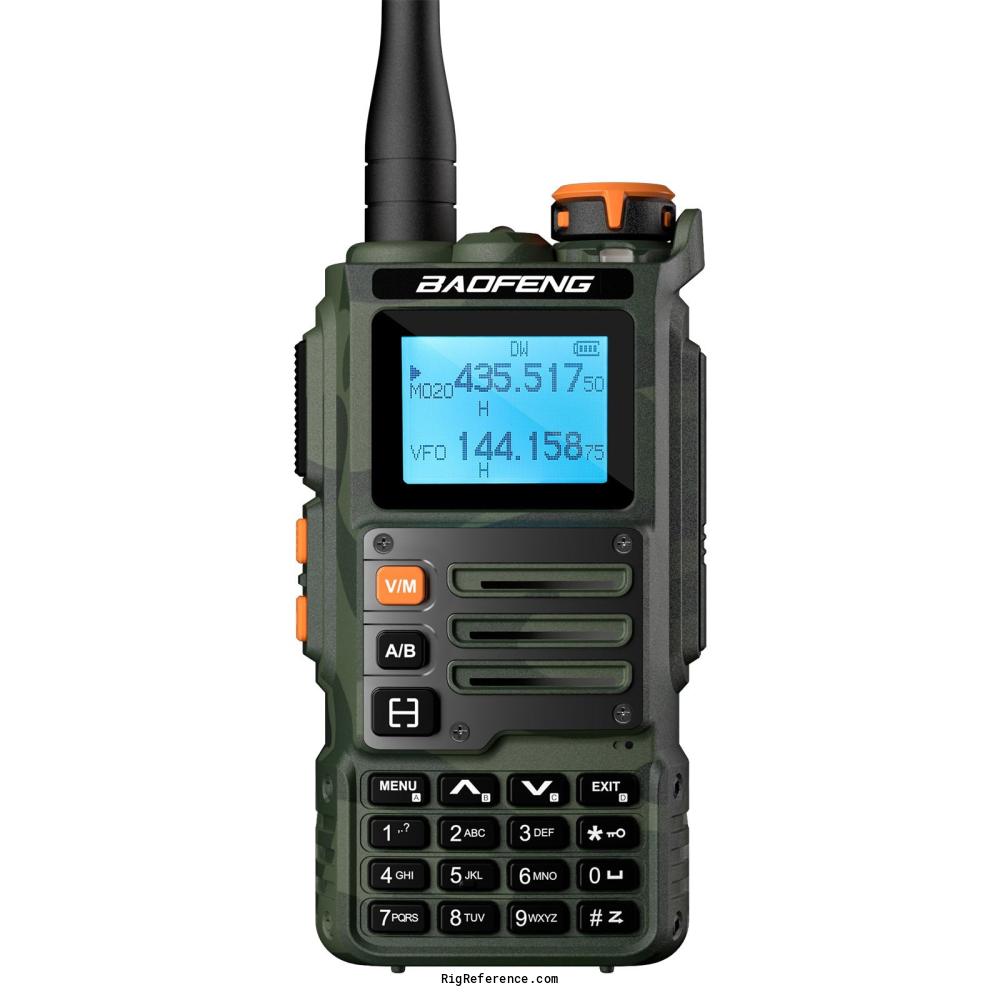

Baofeng K63

General characteristics

HAM bands

2m  1.25m  70cm

Frequency stability

?

Tuning steps

?

Memories

999 channels in bank(s)

Receiver

RX-range

FM broadcast 65-108 MHz, airband 108-136 MHz
136-174 / 200-260 / 350-390 / 400-600 MHz
NOAA weather
EU version: FM broadcast, airband, VHF, 1.25 m, 350-390 MHz, UHF

Modulations

AM   FM   W-FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

136-174 / 220-260 / 400-480 MHz

Modulations

FM

RF-output

6 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

7.4 V Li-ion battery 2600 mAh (BC-K626) USB-C or desktop charging

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Handheld

Manufactured

Between 20xx and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

Tri-band transmit (VHF, 1.25 m, UHF), 6 W
999 channels
One-key frequency copy (frequency ±2.5 ppm, CTCSS/DCS)
Full keypad text entry
FM radio with 30 presets
Dual watch, single watch and single-band modes
One-key reverse repeater frequency
Two programmable side keys
VOX, scrambler, alarm, power-on password
CHIRP supported

Accessories

-

RigReference ID

6846

MPN

BAOFENG-K000063

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Baofeng K63. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baofeng K63. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Baofeng K63 in Good condition is around:

• USD 19

Price History Chart

These estimates are based on the following prices:
