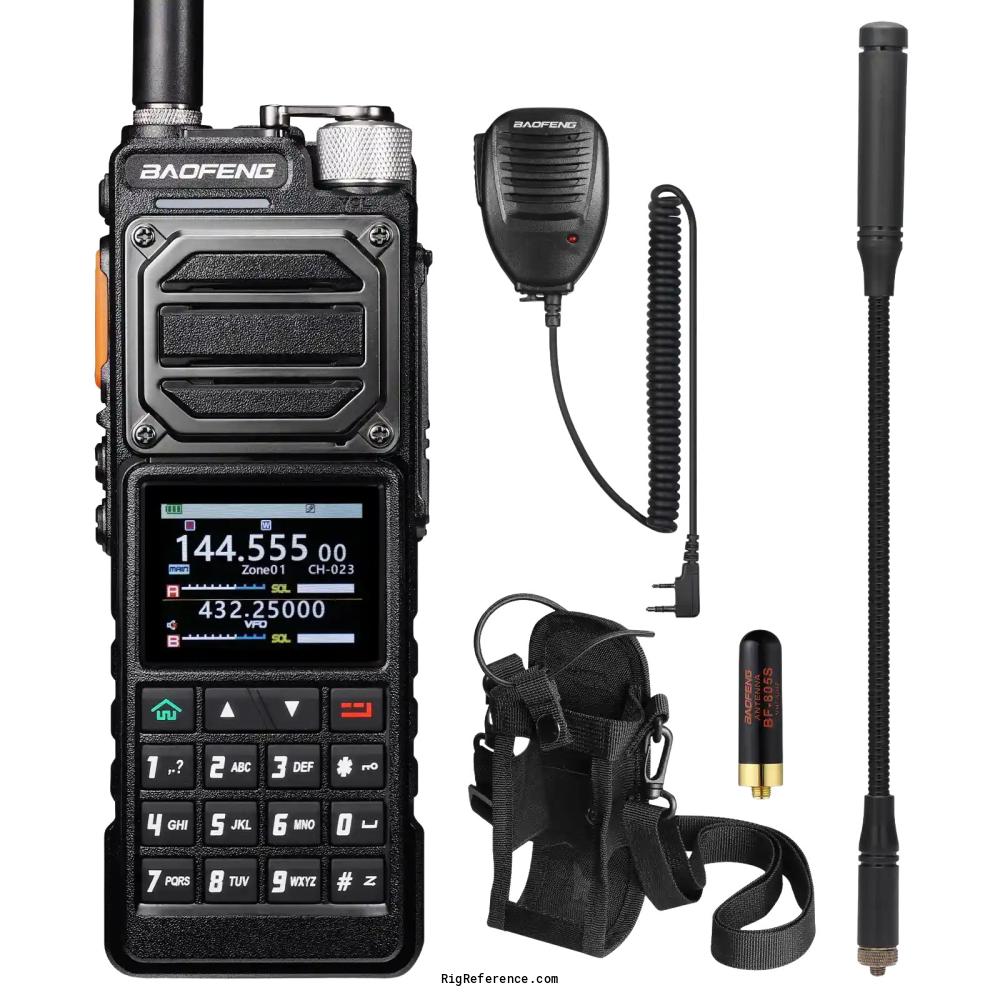

Baofeng UV-25 Plus
Amateur Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Also listed as UV-25 PRO.
Airband, 220-260 MHz and 400-520 MHz receive in VFO mode only.
Operating temperature: -10 to +60 °C
Spurious emission: -16 dBm (1 GHz); audio distortion ≤5%
Channel spacing: 25 / 12.5 kHz
GPS position sharing works with the UV-28 Plus.
General characteristics
- HAM bands
- 2m 1.25m 70cm
- Frequency stability
- ±2.5 ppm
- Tuning steps
- ?
- Memories
- 1000 channels in 10 bank(s)
Receiver
- RX-range
- FM broadcast 65-108 MHz, AM airband 108-136 MHz
136-174 / 220-260 / 350-390 / 400-520 MHz
NOAA weather - Modulations
- AM FM N-FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1 W (16 ohm)
Transmitter
- TX-range
- 136-174 / 220-260 / 400-520 MHz
- Modulations
- FM N-FM
- RF-output
- 10 W (tri-power)
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC ±10%, Li-ion battery 5200 mAh USB-C charging
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 69 × 181 × 44 mm (2.72 × 7.13 × 1.73 in)
- Weight
- 590 gr (1.3 lbs)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Tri-band transmit (VHF, 1.25 m, UHF), 10 W, 3 power levels
Built-in GPS
1000 channels in 10 zones
5200 mAh battery with USB-C charging
AM airband and NOAA weather receive
Full keypad
Easy channel clone (frequency copy)
Fall detection alert
2-pin Kenwood accessory jack - Accessories
- -
- RigReference ID
- 6848
- MPN
- BAOFENG-UV-000025-PLUS
Manuals, diagrams and brochures
-
No manuals yet for the Baofeng UV-25 Plus. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the Baofeng UV-25 Plus
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baofeng UV-25 Plus. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Baofeng UV-25 Plus in Good condition is around:
- USD 52
These estimates are based on the following prices:
