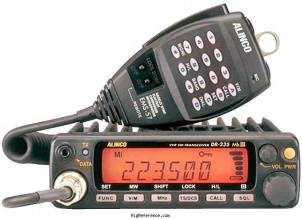

The Alinco DR-235T MKIII is a Mobile VHF Transceiver. It covers 216-278 MHz (after modification: RX/TX 200-299.995 MHz depending on VCO alignment) for receive and 222-225 MHz for transmit. RF output power levels are High: 25 W, Medium: 10 W, Low: 5 W. It features CTCSS, DCS and DTMF. Memory capacity includes 1 bank with 101 channels. Power requirements are 13.8V DC. Dimensions are 40 × 142 × 174 mm. Current drain is Max 600 mA for receive and Max 8 A for transmit.
General characteristics
- HAM bands
- 1.25m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 101 channels in 1 bank(s)
Receiver
- RX-range
- 216-278 MHz (after modification: RX/TX 200-299.995 MHz depending on VCO alignment)
- Modulations
- FM N-FM
- Sensitivity
- 0.25 µV (12 dB SINAD)
- Selectivity
- FM: 12 kHz (-6 dB), 28 kHz (-60 dB)
N-FM: 6 kHz (-6 dB), 14 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 222-225 MHz
- Modulations
- FM N-FM
- RF-output
- High: 25 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 8 A
Physical
- Dimensions (w×h×d)
- 142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2007 and 200x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS, DCS and DTMF. 1K2/9K6 TNC option. Theft alarm Digital voice board option (requires at least two similarly equipped radios)
- Accessories
- -
- RigReference ID
- 2321
- MPN
- ALINCO-DR-000235T-MKIII
