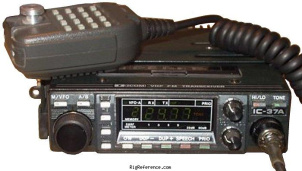

The ICOM IC-37A is a VHF transceiver. It covers 220-225 MHz for both receive and transmit. The RF output is selectable between High: 25 W and Low: 5 W. It features 9 memory channels. Power requirements are 13.8V DC. Current drain is 0.5-0.7 A in receive and 3-6.5 A in transmit. Dimensions are 38 × 140 × 177 mm.
General characteristics
- HAM bands
- 1.25m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 9 channels in 0 bank(s)
Receiver
- RX-range
- 220-225 MHz
- Modulations
- FM
- Sensitivity
- Less than 0.2 µV for 12 dB SINAD
- Selectivity
- More than 15 kHz (-6 dB), less than 30 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 220-225 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.5-0.7 A
- TX
- 3-6.5 A
Physical
- Dimensions (w×h×d)
- 140 × 38 × 177 mm (5.51 × 1.50 × 6.97 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 198x and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3082
- MPN
- ICOM-IC-000037A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-37A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-37A in Good condition is around:
- USD 225
These estimates are based on the following prices:
