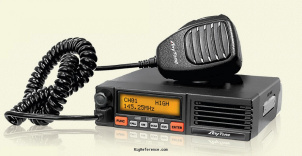

The Anytone AT-5189 is a Mobile transceiver. It covers the frequency range of 66-88 MHz for both transmit and receive. The radio features an image rejection of ≥ 60 dB and has a maximum RF output of 25 W. It includes 1 memory bank and supports CTCSS / DCS. Power requirements are 13.8 V DC (±15%).
General characteristics
- HAM bands
- 1.25m
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 66-88 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ≥ 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 66-88 MHz
- Modulations
- FM
- RF-output
- 25 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC (±15%)
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 201x and 20xx in China
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- CTCSS / DCS
- Accessories
- -
- RigReference ID
- 6417
- MPN
- ANYTONE-AT-005189
