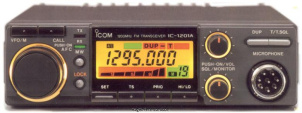

ICOM IC-1201

General characteristics

HAM bands

23cm

Frequency stability

±10 p.p.m. @ -10 to +60°C (14 to 140°F)

Tuning steps

10./ 20 kHz

Memories

22 channels in 1 bank(s)

Receiver

RX-range

1260-1300 MHz

Modulations

FM

Sensitivity

0.22 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

1st: 136.6 MHz
2nd: 17.2 MHz
3rd: 455 kHz

Image rejection

?

Audio output

.4 W at 10% distortion / 8 ohm

Transmitter

TX-range

1260-1300 MHz

Modulations

FM

RF-output

High: 10 W, Low: 1 W

Connections

Antenna

N-type

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

0.8-12 A

TX

3-6 A

Physical

Dimensions (w×h×d)

140 × 40 × 200 mm (5.51 × 1.57 × 7.87 in)

Weight

1.50 kg (3.3 lbs)

Form factor

Mobile

Manufactured

Between 1988 and 199x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS/PL encoder
AFC
RIT/VXO
Dimmer.

Accessories

-

RigReference ID

2966

MPN

ICOM-IC-001201

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-1201. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the ICOM IC-1201 is around:

• USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.
