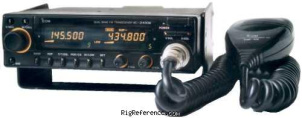

The ICOM IC-2410E is a Mobile VHF/UHF Transceiver. It covers 118-174 MHz / 320-479 MHz for reception and 144-146 / 430-440 MHz for transmission. RF output power is High: 25/25 W, Medium: 10/10 W, Low: 5/5 W. It features Twin RX and requires 13.8V DC power. The current drain during transmit is Max 8 A. Dimensions are 40 × 140 × 175 mm and the weight is 1.35 kg.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
118-174 MHz / 320-479 MHz
Modulations
AM   FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-146 / 430-440 MHz
Modulations
FM
RF-output
High: 25/25 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
Max 8 A

Physical

Dimensions (w×h×d)
140 × 40 × 175 mm (5.51 × 1.57 × 6.89 in)
Weight
1.35 kg (3.0 lbs)
Form factor
Mobile
Manufactured
Between 1991 and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
Twin RX
Accessories
-
RigReference ID
3008
MPN
ICOM-IC-002410E

Manuals, diagrams and brochures

ICOM IC-2410A/E/H Instruction Manual.pdf PDF - Unknown size, submitted by RigReference
