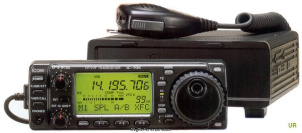

The ICOM IC-706 is a Mobile HF/VHF Transceiver. It covers 0.03-200 MHz all-mode including WFM for reception and transmits on 10-160 m + WARC / 50-54 / 144-146 MHz (Europe) or 10-160 m + WARC / 50-54 / 144-148 MHz (USA). The RF output is 100/100/10 W. It has 1 memory bank with 102 channels and requires 13.8V DC power. Dimensions are 58 × 167 × 200 mm and it weighs 2.5 kg.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 2m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 102 channels in 1 bank(s)
Receiver
- RX-range
- 0.03-200 MHz all-mode incl WFM
- Modulations
- AM FM CW SSB RTTY
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 / 144-146 MHz (Europe)
10-160 m + WARC / 50-54 / 144-148 MHz (USA) - Modulations
- AM FM CW SSB RTTY
- RF-output
- 100/100/10 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 167 × 58 × 200 mm (6.57 × 2.28 × 7.87 in)
- Weight
- 2.50 kg (5.5 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1995 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3129
- MPN
- ICOM-IC-000706
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Great Mobile | 3 years ago by kv4io | |
| Great radio for a Ham beginner | 11 years ago by Berenland |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-706. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ICOM IC-706 is around:
- EUR 75.00 ~ EUR 62.00
- USD 84.00 ~ USD 12.00
These estimates are based on the following prices:
