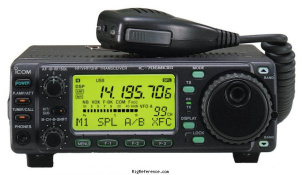

The '706' series represents one of the most popular transceivers in amateur radio histroy. The latest version is the incredibly small Icom IC-706 Mark II G which adds many new features and capabilities not found in the previous ICOM IC-706 and ICOM IC-706MKII versions. The "G" is an all-mode transceiver provides 100 watts on HF and 6 meters and 50 watts on 2 meters plus 20 watts on 440 MHz. It receives from 30 kHz to 199 MHz and from 400 to 470 MHz. It features a removable, remoteable, front panel that allows control of all features. The large LCD display features alphanumeric memory names (9 character) and soft key descriptions. The LCD even supports a simple band scope display. Other advanced features include: IF Shift, RIT, Tone Squelch, Scanning, Noise Blanker, Speech Compressor, Mini Spectrum Scope and Electronic Keyer. This latest version in the 706 series includes the UT-106 DSP module as a standard feature. Despite its compact size it has big, easy to use control dials.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  2m  70cm  10m
Frequency stability
?
Tuning steps
?
Memories
99 channels in 1 bank(s)

Receiver

RX-range
0.03-200 / 400-470 MHz all-mode incl WFM
Modulations
AM   FM   CW   SSB   RTTY
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
10-160m + WARC / 50-54 / 144-146 / 430-440 MHz (Europe)
10-160m + WARC / 50-54 / 144-148 / 430-450 MHz (USA)
Modulations
AM   FM   CW   SSB   RTTY
RF-output
100/100/50/20 W

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
1.8-2.0 A
TX
Max 20 A

Physical

Dimensions (w×h×d)
167 × 58 × 200 mm (6.57 × 2.28 × 7.87 in)
Weight
2.45 kg (5.4 lbs)
Form factor
Mobile
Manufactured
Between 1999 and 2010

Other features

Usage
Amateur / Ham radio operators
Features + options
107 memories (99 regular, 6 scan edges, 2 call channels)
Accessories
-
RigReference ID
3131
MPN
ICOM-IC-000706MKIIG

Manuals, diagrams and brochures

ICOM IC-706 Mk-IIG Instruction Manual.pdf PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Great for ragchewing and everyday usage. 5 years ago by pauldeloop
It's OK...just 12 years ago by KA9MOT
First HF rig 13 years ago by KJ4VOV

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-706MKIIG. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-706MKIIG is around:

  • EUR 1991.00 ~ EUR 381.00
  • USD 410.00 ~ USD 328.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2023 USD 650.00 Used / Good Mark Andrews
2022 EUR 2000.00 Used / Good Vinicius Macedo
2021 USD 575.00 Used / Mint WILKEY
2019 USD 650.00 Used / Good Cliff Fox
2019 USD 455.00 Used / Good Jim M.
