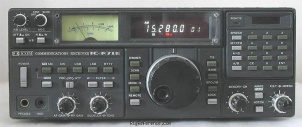

ICOM IC-R71E

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m

Frequency stability

?

Tuning steps

?

Memories

32 channels in 1 bank(s)

Receiver

RX-range

0.1-30 MHz

Modulations

AM   FM   CW   USB   LSB   RTTY

Sensitivity

AM (10 dB S+N/N)
0.1-1.6 MHz: 3 µV
1.6-30 MHz: <0.5 µV
SSB/CW/RTTY (10 dB S+N/N)
0.1-1.6 MHz: 1 µV
1.6-30 MHz: <0.15 µV
FM (10 dB SINAD)
1.6-30 MHz: <0.3 µV

Selectivity

AM: 2.7-6 kHz (-6 dB), 15 kHz (-50 dB)
SSB/CW/RTTY: 0.5-2.3 kHz (-6 dB), 4.2 kHz (-60 dB)
CW-N/RTTY-N: 500 Hz (-6 dB), 1.5 kHz (-60 dB)
FM: 15 kHz (-6 dB), 25 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

>60 dB

Audio output

?

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains (13.8V DC option)

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

286 × 111 × 276 mm (11.26 × 4.37 × 10.87 in)

Weight

7.50 kg (16.5 lbs)

Form factor

Base Station

Manufactured

Between 1984 and 1996

Other features

Usage

Amateur / Ham radio operators

Features + options

PBT

Accessories

-

RigReference ID

3224

MPN

ICOM-IC-R000071E
