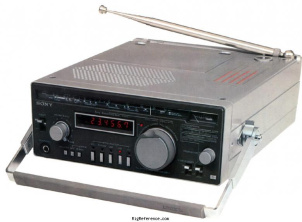

The Sony CRF-1 is a desktop shortwave receiver covering 0.01-30 MHz plus the FM broadcast band with tuning steps of 0.1 kHz. It uses a double conversion superheterodyne receiver system with IF frequencies of 55.845 MHz (1st) and 455 kHz (2nd). Features include S/Battery Meter, Record Jack, Pre-selector, NB, Dial Lamp, Dial Lamp Switch, Carry Handle, Muting, and RF Gain. The CRF-1 weighs 7.71 kg and measures 102 × 254 × 335 mm. Power requirements are 12 V DC external or 8 x R20 + 2 x R6 batteries.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- 0.1 kHz
- Memories
- None
Receiver
- RX-range
- 0.01-30 MHz + FM broadcast band
- Modulations
- AM CW USB LSB
- Sensitivity
- AM < 1 µV
SSB < 0,3 µV - Selectivity
- AM
10 kHz (-6 dB), 16 kHz (-60 dB)
4,4 (-6 dB), 8 kHz (-60 dB)
SSB
2,0 (-6 dB), 3,4 kHz (-60 dB) - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 55.845 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- Built-in sweep
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 12 V DC external, 8 x R20 + 2 x R6 batteries or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 254 × 102 × 335 mm (10.00 × 4.02 × 13.19 in)
- Weight
- 7.71 kg (17.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1981 and 1986 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- S/Battery-Meter
Record Jack
Pre-selector
NB
Dial Lamp
Dial Lamp Switch
Carry Handle
Muting
RF Gain - Accessories
- -
- RigReference ID
- 4003
- MPN
- SONY-CRF-000001
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sony CRF-1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Sony CRF-1 in Good condition is around:
- USD 889
These estimates are based on the following prices:
