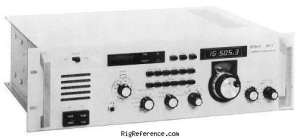

This is a commercial/maritime version of the Drake R7A, featuring an internal speaker and rack-mount form factor.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m 2000m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- None
Receiver
- RX-range
- 10 kHz-30 MHz divided into 11 bands
- Modulations
- AM CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double/triple conversion superheterodyne
- IF-frequencies
- 1st: 48050 kHz
2nd: 5645 kHz - Image rejection
- ?
- Audio output
- Internal speaker
Connections
- Antenna
- -
- Impedance
- 50/200Ω
- Other
- -
Electrical
- Power requirements
- 24V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 480 × 133 × 356 mm (18.90 × 5.24 × 14.02 in)
- Weight
- 8.60 kg (19.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1981 and 19xx in USA
Other features
- Usage
- Marine / Navy
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2589
- MPN
- DRAKE-RR-000003
