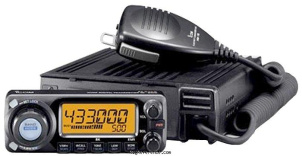

ICOM ID-800D

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

512 channels in 1 bank(s)

Receiver

RX-range

118-174 / 230-550 / 834-915 / 960.1-1000 MHz

Modulations

AM   FM   N-FM   GMSK

Sensitivity

?

Selectivity

FM: 12 kHz (-6 dB), 30 kHz (-60 dB)
N-FM: 6 kHz (-6 dB), 20 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

60 dB

Audio output

?

Transmitter

TX-range

144-146 / 430-440 MHz

Modulations

FM   N-FM

RF-output

High: 50/50 W, Medium: 15/15 W, Low: 5/5 W

Connections

Antenna

N-type

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

Max 1.1 A

TX

Max 12.5 A

Physical

Dimensions (w×h×d)

141 × 40 × 39 mm (5.55 × 1.57 × 1.54 in) transceiver

Weight

1.20 kg (2.6 lbs)

Form factor

Mobile

Manufactured

Between 2004 and 200x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

GPS option.

Accessories

-

RigReference ID

3274

MPN

ICOM-ID-000800D
