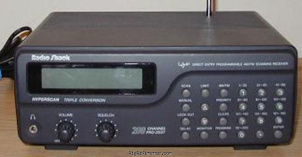

The RadioShack / Realistic Pro-2037 is a desktop VHF/UHF scanner/receiver. It covers 68-88 / 118-174 / 380-512 / 806-960 MHz (Europe). The receiver system is triple conversion superheterodyne with IF frequencies of 1st: 257.5 MHz, 2nd: 21.4 MHz and 3rd: 455 kHz. It features an internal speaker, 1 memory bank with 200 channels. The Pro-2037 weighs 1.1 kg and measures 82 × 216 × 171 mm. It requires 13.8 V DC or mains power. Current drain in receive mode is 8 / 13 W.
General characteristics
- HAM bands
- 2m 70cm 33cm
- Frequency stability
- ?
- Tuning steps
- 5 / 12.5 / 25 kHz
- Memories
- 200 channels in 1 bank(s) @ 25 channels/second
Receiver
- RX-range
- 68-88 / 118-174 / 380-512 / 806-960 MHz (Europe)
- Modulations
- AM FM
- Sensitivity
- 68-88 MHz: ? µV
118-137 MHz: 2 µV
137-174 MHz: 1 µV
380-512 MHz: 1 µV
806-960 MHz: 2 µV - Selectivity
- ?
- Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- 1st: 257.5 MHz
2nd: 21.4 MHz
3rd: 455 kHz - Image rejection
- ?
- Audio output
- Internal speaker
Connections
- Antenna
- Built-in telescopic
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC or mains
- Current drain RX
- 8 / 13 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 216 × 82 × 171 mm (8.50 × 3.23 × 6.73 in)
- Weight
- 1.10 kg (2.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 199x and 199x in China (By GRE)
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3864
- MPN
- 20-9461
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RadioShack / Realistic Pro-2037. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
