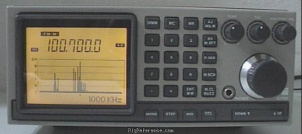

The Standard AX-700 is a Mobile VHF/UHF Scanner / receiver. It covers 50-905 MHz and has a tuning step of 10 / 12.5 / 20 / 25 kHz. The AX-700 features 1 memory bank with 100 channels, Bandscope, TV tuner front end. The receiver requires 13.8V DC +/-15% and has a maximum current drain of 1A in receive mode. Dimensions are 75 × 180 × 180 mm and the unit weighs 2.1 kg.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 10 / 12.5 / 20 / 25 kHz
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 50-905 MHz
- Modulations
- AM FM W-FM
- Sensitivity
- AM: 3V (10dB S/N)
FM: 1.5V (12 dB SINAD)
W-FM: 1V (12 dB SINAD @ 83 MHz) - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/-15%
- Current drain RX
- Max 1 A
- TX
- -
Physical
- Dimensions (w×h×d)
- 180 × 75 × 180 mm (7.09 × 2.95 × 7.09 in)
- Weight
- 2.10 kg (4.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1988 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Bandscope TV tuner front end
- Accessories
- -
- RigReference ID
- 4047
- MPN
- STANDARD-AX-000700
Manuals, diagrams and brochures
- Standard AX-700 PDF - 11.45 MB, submitted by Berend
- AX-700 Schematic JPEG - 2.44 MB, submitted by Berend
- AX-700 Block Diagram JPEG - 842.6 kB, submitted by Berend
- Standard AX-700 User PDF - 2.51 MB, submitted by Pat Malloy
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Standard AX-700. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Standard AX-700 is around:
- EUR 165.00
- USD 349.00
These estimates are based on the following prices:
