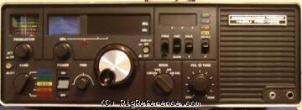

Yaesu FRG-7000

General characteristics

HAM bands

?

Frequency stability

±500Hz per 30 minutes after warm-up

Tuning steps

?

Memories

?

Receiver

RX-range

0.25-29.9 MHz

Modulations

AM   CW   USB   LSB

Sensitivity

0.7 µV 2-30 MHz, SSB/CW (S+N/N=10dB)

Selectivity

AM 6.0 kHz, SSB/CW 3 kHz

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

?

Image rejection

?

Audio output

2 Watts at 4 Ohms

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains (100/110/117/200/220/234 VAC 50/60 Hz)

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

360 × 125 × 295 mm (14.17 × 4.92 × 11.61 in)

Weight

7.00 kg (15.4 lbs)

Form factor

Base Station

Manufactured

Between 1977 and 1980 in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

ANL (Automatic Noise Limiting)
Attenuator
Carry handle
Digital clock timer
Digital display
Fine tuning
Mute line
Pre-selector
Record jack
Recorder activation jacks
S-Meter
Tone control
¼" Headphones jack

Accessories

-

RigReference ID

4220

MPN

YAESU-FRG-007000

Manuals, diagrams and brochures

Yaesu FRG-7000 Schematic Diagram PDF - Unknown size, submitted by RigReference

Yaesu FRG-7000 IM PDF - 11.34 MB, submitted by Berend
