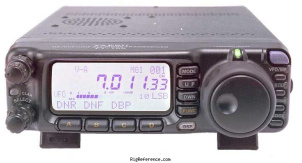

The Yaesu FT-100 is a miniature mobile transceiver that provides coverage of the 160 to 6 meter bands plus the 144 MHz and 430 MHz bands! The ultra-compact FT-100D combines a unique, user-friendly front panel with high-tech features like DSP to provide performance well above many base stations. And look at the receive coverage: 0.1-76, 108-174 and 420-512 MHz. Refinements include: IF shift, IF NB, dual VFO's, keyer, 300 memories and CTCSS. Plus you get DSP bandpass filter, notch filter, noise reduction and equalizer.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  2m  70cm  10m
Frequency stability
≤ 1 p.p.m. (-10 °C to +50 °C) (SSB/CW/AM)
Tuning steps
1.25 Hz (CW/SSB), 100 Hz (AM) / 100 Hz (FM), 1 kHz (FM)
Memories
300 channels in 1 bank(s)

Receiver

RX-range
0.1-961 MHz (Cellular blocked)
Modulations
AM   FM   CW   USB   LSB   AFSK   RTTY
Sensitivity
SSB/CW
150 kHz - 250 kHz (IPO off): 5 µV
250 kHz - 1.8 MHz (IPO off): 4 µV
1.8 - 28 MHz (IPO off): 0.25 µV
28 - 30 MHz: 0.25 µV
50 - 54 MHz: 0.20 µV
144/430 MHz: 0.125 µV

AM/N-AM
150 kHz - 250 kHz (IPO off): 40 µV
250 kHz - 1.8 MHz (IPO off): 32 µV
1.8 - 28 MHz (IPO off): 2 µV
28 - 30 MHz: 2 µV
50 - 54 MHz: 2 µV
144/430 MHz: 2 µV

FM
28 - 30 MHz: 0.50 µV
50 - 54 MHz: 0.50 µV
144/430 MHz: 0.20 µV

SSB/CW/AM-N figures are for 10 dB S/N, 12 dB SINAD on FM
Selectivity
SSB/CW: 2.2 kHz / 5.2 kHz
CW: 450 Hz / 1.8 kHz
CW-N: 250 Hz / 1.2 kHz (Optional XF-117CN installed)
AM: 5.2 kHz / 18 kHz (Optional XF-117A installed)
FM: 15 kHz / 25 kHz (-6 / -50 dB)
Filters
?
Receiver system
Double/triple conversion superheterodyne
IF-frequencies
1st: 68.985 MHz (SSB/CW/FM/Digital) / 67.980 MHz (W-FM)
2nd: 11.705 MHz (SSB/CW/FM/Digital) / 10.700 MHz (W-FM)
3rd: 455 kHz (FM)
Image rejection
> 70 dB (1.8 - 30 MHz, 50 - 54 MHz) / > 60 dB (144 - 148 MHz, 430 - 450 MHz)
Audio output
1.5 W into 8 Ohm @ 10% THD

Transmitter

TX-range
10-160 m + WARC / 50-54 / 144-146 / 430-440 MHz
5167.5 kHz (Alaska Emergency Frequency - US only)
Modulations
AM   FM   CW   USB   LSB   AFSK   RTTY
RF-output
100 / 50 / 20 W (25 / 12.5 / 5 W AM)

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
1.6 A max
TX
22 A max

Physical

Dimensions (w×h×d)
160 × 54 × 205 mm (6.30 × 2.13 × 8.07 in)
Weight
3.00 kg (6.6 lbs)
Form factor
Mobile
Manufactured
Between 19xx and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4225
MPN
YAESU-FT-000100

Manuals, diagrams and brochures

Yaesu FT-100D Operating Manual PDF - 4.74 MB, submitted by RigReference
Yaesu FT-100 Undocumented Tips And Tricks PDF - 1.28 MB, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Amazing little radio 4 years ago by arnoldleonard44
Yaeseu FT-100 8 years ago by k9py
Versatile rig 13 years ago by kk6fx

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-100 is around:

  • EUR 299.00
  • USD 167.00 ~ USD 152.00
  • GBP 205.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2023 EUR 300.00 Used / Good Tom Nilssen
2021 USD 170.00 Used / Good bndr
2020 USD 160.00 Used / Okay eBay
2018 GBP 250.00 Used / Okay arnoldleonard44
2010 USD 410.00 Used / Mint eBay
