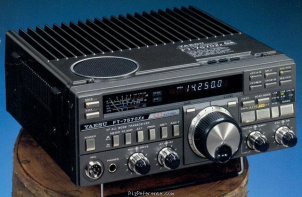

The Yaesu FT-757GXII is an affordable HF transceiver covering 160 to 10 meters and has ten memories. The general coverage receiver tunes from 150 kHz to 30 MHz. Power is 100 watts in CW, SSB, FM and 25 watts AM. The FT-757GXII features IF Shift, IF Notch and Noise Blanker.
This model replaces the earlier FT-757GX.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m
Frequency stability
?
Tuning steps
Continuous
Memories
None

Receiver

RX-range
150 kHz - 29.99999 MHz
Modulations
AM   FM   CW   USB   LSB   FSK
Sensitivity
SSB/CW: 0.25 µV
AM: 1 µV
FM: 0.5 µV (12 dB SINAD)
Selectivity
SSB/CW (W)/FSK: 2.7 / 4.5 kHz
CW (N): 0.6 / 1.3 kHz
AM: 6 / 18 kHz
FM: 15 / 30 kHz
(-6 dB / -60 dB)
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
47.060 / 8.215 MHz / 455 kHz
Image rejection
≥ 70 dB
Audio output
1.5 W at 10% distortion into 4 ohms

Transmitter

TX-range
10-160 m + WARC
Modulations
AM   FM   CW   USB   LSB   FSK
RF-output
100 W (AM: 25 W)

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
2 A
TX
19 A max

Physical

Dimensions (w×h×d)
238 × 93 × 238 mm (9.37 × 3.66 × 9.37 in)
Weight
5.20 kg (11.5 lbs)
Form factor
Base Station
Manufactured
Between 1987 and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
Electronic Keyer
If Notch
IF Shift
Dual VFOs
Noise Blanker
100 Watts Output
Semi/Full Break-in CW
Attenuator
Speech Compressor
VOX
Electronic Keyer
Accessories
-
RigReference ID
4340
MPN
YAESU-FT-000757GX-II

Manuals, diagrams and brochures

Yaesu FT-757GXII Technical Supplement PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Yeasu FT-757gx is one fine radio! 5 years ago by tommy44

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-757GX II. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-757GX II is around:

  • EUR 196.00 ~ EUR 6.00
  • USD 66.00 ~ USD 41.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2021 EUR 200.00 Used / Fair Carlos Wenzel
2018 USD 50.00 Used / Poor Necromonster
2017 EUR 250.00 Used / Good Lukas Thorwald Hey
2013 USD 400.00 Used / Okay drguyor
2013 EUR 300.00 Used / Good earman
