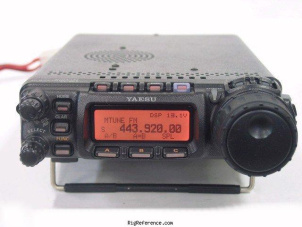

The Yaesu FT-857D is a Mobile HF/VHF/UHF Transceiver. It covers 0.1-76 / 108-174 / 420-512 MHz in receive and 10-160 m + WARC and 60 m / 6 m / 2 m / 70 cm in transmit. RF output is 100 W on 6-160 m, 50 W on 2 m and 20 W on 70 cm. It features a built-in keyer, beacon mode, 32 color display, CTCSS and detachable front panel. The radio has 1 memory bank with 200 channels. Dimensions are 52 × 155 × 233 mm. It requires 13.8V DC power supply. Current drain is 0.6-1 A in receive and max 22 A in transmit. The weight is 2.1 kg.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 0.1-76 / 108-174 / 420-512 MHz
- Modulations
- AM FM W-FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC and 60 m / 6 m / 2 m / 70 cm
- Modulations
- AM FM CW SSB
- RF-output
- 6-160 m: 100 W, 2 m: 50 W, 70 cm: 20 W
Connections
- Antenna
- SO-239 + N-type
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.6-1 A
- TX
- Max 22 A
Physical
- Dimensions (w×h×d)
- 155 × 52 × 233 mm (6.10 × 2.05 × 9.17 in)
- Weight
- 2.10 kg (4.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2004 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in keyer. Beacon mode. 32 color display. CTCSS. Detachable front panel. DSP included in this updated version
- Accessories
- -
- RigReference ID
- 4362
- MPN
- YAESU-FT-000857D
Manuals, diagrams and brochures
- Yaesu FT-857D Operating Manual PDF - 4.43 MB, submitted by Mike
- Yaesu FT-857 Service Manual PDF - 12.53 MB, submitted by Mike
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| 857D One of the best in class | 11 years ago by ac0hd | |
| Hard to beat for the money.... | 12 years ago by KA9MOT | |
| Great versatile rig | 14 years ago by wudcutr | |
| Nice, but vulnerable | 15 years ago by PA3CNO |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-857D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-857D is around:
- EUR 158.00 ~ EUR 287.00
- USD 120.00 ~ USD 197.00
- CAD 848.00
- AUD 65.00
These estimates are based on the following prices:
