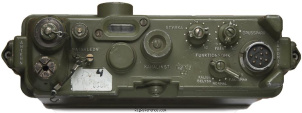

The Swedish Military Ra 105 is an infantry back-pack transceiver covering 38 to 55 MHz in FM only. Uses miniature tubes.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- 100 kHz
- Memories
- ?
Receiver
- RX-range
- 38-55 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- External handset
Transmitter
- TX-range
- ?
- Modulations
- FM
- RF-output
- 0.9 W
Connections
- Antenna
- BNC + Proprietary (military)
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 1.5, -6, 67.5 and 135 V DC 12 V DC from battery pack and a built-in voltage converter
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 265 × 455 × 85 mm (10.43 × 17.91 × 3.35 in) without battery pack
- Weight
- 4.60 kg (10.1 lbs)
- Form factor
- Mobile
- Manufactured
- Between 196x and 197x in Sweden by SRA
Other features
- Usage
- Military communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5203
- MPN
- MILITARY-RA-000105
Manuals, diagrams and brochures
- Ra 105 Original power supply circuit diagram JPG - Unknown size, submitted by RigReference
- Ra 105 Replacement power supply circuit diagram JPG - Unknown size, submitted by RigReference
