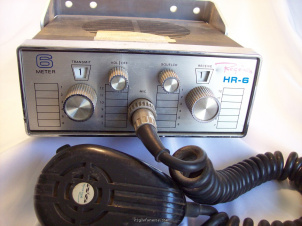

The Regency HR-6 is an all-transistor, 12 channel FM transceiver designed for use in the 6-meter (52-54 MHz) Amateur Band. Its receiver section is a double-conversion, super-heterodyne type with plug-in crystal-controlled frequency selection. Receiver channel selection is independent from transmitter channel selection.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- Channelized, x-tal
- Memories
- 12 channels in 1 bank(s)
Receiver
- RX-range
- 52-54 MHz (6 m)
- Modulations
- FM
- Sensitivity
- 0.35 µV (20 dB quieting)
- Selectivity
- 16 kHz @ -6 dB
32 kHz @ -50 dB - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 10.7 MHz / 455 kHz
- Image rejection
- 60 dB
- Audio output
- 3 W
Transmitter
- TX-range
- 52-54 MHz (6 m)
- Modulations
- FM
- RF-output
- 25 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 380 mA
- TX
- 4.5 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 197x and 197x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5980
- MPN
- REGENCY-HR-000006
Manuals, diagrams and brochures
- Regency HR-6 Manual PDF - 520.5 kB, submitted by RigReference
- Regency HR-6 JPEG - 54.3 kB, submitted by Pancho Cheja
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Regency HR-6. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Regency HR-6 is around:
- USD 38.00
These estimates are based on the following prices:
