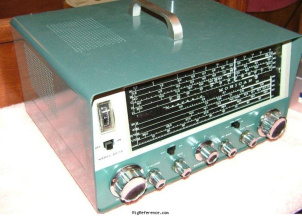

Heathkit GC-1A 'Mohican'

General characteristics

HAM bands

80m  20m  15m  11m (CB)  10m

Frequency stability

?

Tuning steps

Continuous

Memories

None

Receiver

RX-range

0.55-32 MHz in 5 bands

Modulations

AM   CW   SSB

Sensitivity

Broadcast band: 10 µV (10 dB SN)
Short wave bands: 2 µV (10 dB SN)

Selectivity

± 3 kHz (-6 dB)

Filters

-

Receiver system

Single conversion superheterodyne

IF-frequencies

455 kHz

Image rejection

?

Audio output

400 mW

Connections

Antenna

Clamps / screws + Built-in telescopic

Impedance

50Ω

Other

-

Electrical

Power requirements

12 V DC or 8 × C cells

Current drain RX

35 mA

TX

-

Physical

Dimensions (w×h×d)

305 × 175 × 254 mm (12.01 × 6.89 × 10.00 in)

Weight

9.00 kg (19.9 lbs)

Form factor

Mobile

Manufactured

Between 1962 and 1968 in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5359

MPN

HEATHKIT-GC-000001A-'MOHICAN'

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit GC-1A 'Mohican'. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Heathkit GC-1A 'Mohican' is around:

• USD 6.00

Price History Chart

These estimates are based on the following prices:
