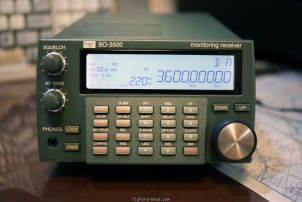

Boger BO-3500

General characteristics

HAM bands

?

Frequency stability

10MHz reference intern: < ± 1,5 p.p.m., -10° - +55°C

Tuning steps

?

Memories

?

Receiver

RX-range

10 kHz - 3.6 GHz

Modulations

AM   FM   W-FM   W-FM Stereo   CW   USB   LSB

Sensitivity

2-30MHz
SSB 0,4µV, 10dB S/N, BW 2,4kHz
AM 1,3µV, 10dB S/N, BW 6,0kHz

>30MHz
SSB 0,3µV, 10dB S/N, BW 2,4kHz
FM 0,4µV 12dB SINAD, BW 15kHz

Selectivity

?

Filters

2.4 / 4 / 6 / 15 / 30 / 110 / 220 kHz 500 kHz optional

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 10.7 MHz
2nd: 455 kHz

Image rejection

?

Audio output

1,0 watt at 8 Ohm – 1% THD

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

12 V DC

Current drain RX

25 W

TX

-

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Base Station

Manufactured

Between 2011 and 20xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Video modulator
RS-232C and USB
External 10 MHz reference input

Accessories

-

RigReference ID

5527

MPN

BOGER-BO-003500
