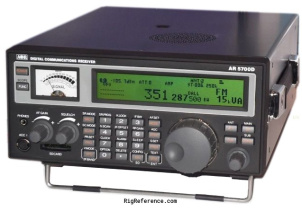

AOR AR-5700D

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

1 Hz to 999.999 kHz (2 Hz above 3 GHz)

Memories

2000 channels in 40 bank(s) @ 100 channels/second

Receiver

RX-range

0.009-3700 MHz (not guaranteed below 40 kHz)

Modulations

AM   AM-sync   FM   W-FM   CW   USB   LSB   TV

Sensitivity

AM (10 dB S/N, 6 kHz BPF)
0.04-0.05 MHz: 15 µV
0.05-0.06 MHz: 10 µV
0.06-0.07 MHz: 7 µV
0.08-0.1 MHz: 4 µV
0.1-25 MHz: 2 µV
25-2750 MHz: 1 µV
2750-3000 MHz: 1.7 µV
3000-3150 MHz: 4 µV
FM (12 dB SINAD, 15 kHz BPF)
25-2750 MHz: 0.4 µV
2750-3000 MHz: 0.6 µV
3000-3150 MHz: 0.6 µV
3150-4600 MHz: 0.5 µV
4600-5800 MHz: 0.7 µV
5800-6000 MHz: 1.5 µV
WFM (12 dB SINAD, 200 kHz BPF)
25-2750 MHz: 1.5 µV
2750-3000 MHz: 2.5 µV
3000-3150 MHz: 3.5 µV
SSB (10 dB S/N, 3 kHz BPF)
0.04-0.05 MHz: 6 µV
0.05-0.06 MHz: 4 µV
0.06-0.07 MHz: 3 µV
0.08-0.1 MHz: 1.5 µV
0.1-25 MHz: 0.7 µV
25-2750 MHz: 0.5 µV
2750-3000 MHz: 0.7 µV
3000-3150 MHz: 1.5 µV

Selectivity

200 Hz / 500 Hz / 3 kHz / 6 kHz / 15 kHz / 30 kHz / 100 kHz / 200 kHz / 300 kHz

Filters

?

Receiver system

Single (9 kHz-25 MHz) / double (25-220 MHz) / triple (220-360 MHz) conversion

IF-frequencies

1st: 1704.5 / 294.5 / 295 MHz
2nd: 45.05 / 294.5 / 45 MHz
3rd: 45.05 MHz

Image rejection

?

Audio output

?

Connections

Antenna

N-type

Impedance

50Ω

Other

-

Electrical

Power requirements

10-16 V DC

Current drain RX

200 - 1500 mA

TX

-

Physical

Dimensions (w×h×d)

220 × 97 × 304 mm (8.66 × 3.82 × 11.97 in)

Weight

3.50 kg (7.7 lbs)

Form factor

Base Station

Manufactured

Between 2013 and 20xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS/PL, DCS and DTMF-decoder
DSP with auto-notch and noise reduction
Dual watch (One frequency below 25 MHz and one above 25 MHz) or ±5 MHz offset RX (VHF/UHF only)
Five VFO's
RS-232C and USB
Real-time FFT spectrum display (400 kHz to 10 MHz width)
SD memory card slot for storing received audio and extended memory management
Video output
Voice inversion descrambler

Accessories

-

RigReference ID

6181

MPN

AOR-AR-005700D
