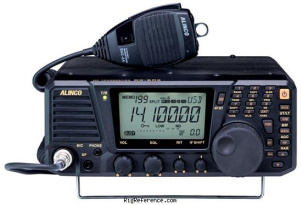

The Alinco DX-SR9 is the successor to the Alinco DX-SR8. It adds SDR and 10m coverage. The SDR system in DX-SR9 consists of I/Q signal output and a mixer circuit. It requires a high quality sound device (internal or USB-interface) and PC.
This radio lacks a CAT control interface.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ± 1 p.p.m.
- Tuning steps
- 10 Hz
- Memories
- 600 channels in 3 bank(s)
Receiver
- RX-range
- 135 kHz - 30 MHz
- Modulations
- AM FM CW USB LSB PSK31/63
- Sensitivity
- AM
0.15-1.8 MHz: 10 µV
1.8-30 MHz: 2 µV
FM 28-30 MHz: 0.5 µV
SSB 0.15-1.8 MHz: 1 µV
CW 1.8-30 MHz: 0.25 µV - Selectivity
- AM Narrow 2.4 kHz (-6 dB), 4.5 kHz (-60 dB)
AM/FM 6 kHz (-6 dB), 18 kHz (-60 dB)
SSB/CW 2.4 kHz (-6 dB), 4.5 kHz (-60 dB) - Filters
- 2.4 / 1 / 0.5 kHz
- Receiver system
- Double conversion superheterodyne / SDR
- IF-frequencies
- 1st: 71.75 MHz
2nd: 455 kHz - Image rejection
- 70 dB
- Audio output
- More than 2.0 W into 8 ohm 10% THD
Transmitter
- TX-range
- 10-160 m + WARC
5.3 MHz (USA only) - Modulations
- AM FM CW USB LSB PSK31/63
- RF-output
- FM/SSB/CW: 1/10/100 W, AM: 0.4/4/40 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11.7 - 15.8V DC
- Current drain RX
- 1 A max
- TX
- 20 A max
Physical
- Dimensions (w×h×d)
- 240 × 100 × 293 mm (9.45 × 3.94 × 11.54 in) including protrusions
- Weight
- 4.10 kg (9.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2013 and 201x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Detachable front-panel
IF-shift
Noise blanker
RIT/TXIT
Electronic keyer - Accessories
- -
- RigReference ID
- 6045
- MPN
- ALINCO-DX-SR000009
Manuals, diagrams and brochures
- Alinco DX-SR9 Instruction manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Good Back-Up Transceiver | 1 year ago by richard_n_08232 | |
| Don't waste your hard earned cash on this | 9 years ago by Charles |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DX-SR9. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Alinco DX-SR9 is around:
- USD 299.00
These estimates are based on the following prices:
