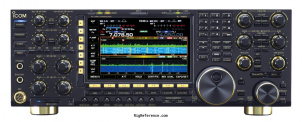

ICOM IC-7850

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m  2000m

Frequency stability

≥ ±0.05 p.p.m.

Tuning steps

1 Hz minimum

Memories

?

Receiver

RX-range

0.03-60 MHz

Modulations

AM   FM   CW   USB   LSB   RTTY   PSK31/63

Sensitivity

SSB, CW, RTTY, PSK (BW=2.4 kHz, 10 dB S/N)
0.100–1.799 MHz 0.5 µV (pre-amp 1 ON)
1.800–29.990 MHz 0.16 µV (pre-amp 1 ON)
50.000–54.000 MHz 0.13 µV (pre-amp 2 ON)
AM (BW=6 kHz, 10 dB S/N)
0.100–1.799 MHz 6.3 µV (pre-amp 1 ON)
1.800–29.990 MHz 2 µV (pre-amp 1 ON)
50.000–54.000 MHz 1 µV (pre-amp 2 ON)
FM (BW=15 kHz, 12 dB SINAD)
28.000–29.990 MHz 0.5 µV (pre-amp 1 ON)
50.000–54.000 MHz 0.32 µV (pre-amp 2 ON)

Selectivity

SSB, RTTY (BW=2.4 kHz) More than 2.4 kHz/–3 dB
Less than 3.6 kHz/–60 dB
CW/RTTY/PSK (BW=500 Hz) More than 500 Hz/–3 dB
Less than 700 Hz/–60 dB
AM (BW=6 kHz) More than 6.0 kHz/–3 dB
Less than 15.0 kHz/–60 dB
FM (BW=15 kHz) More than 12.0 kHz/–6 dB
Less than 20.0 kHz/–60 dB

Filters

15 / 6 / 3 / 1.2 kHz

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 64.455 MHz (MAIN band), 64.555 MHz (SUB band)
2nd: 36 kHz

Image rejection

?

Audio output

2.6 W at 10% distortion with an 8 Ω load

Transmitter

TX-range

160-6 m
2000 m option

Modulations

AM   FM   CW   USB   LSB   RTTY   PSK31/63

RF-output

5-200 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains (85-265 V AC)

Current drain RX

150 VA

TX

800 VA max

Physical

Dimensions (w×h×d)

425 × 149 × 435 mm (16.73 × 5.87 × 17.13 in)

Weight

23.50 kg (51.8 lbs)

Form factor

Base Station

Manufactured

Between 2014 and 201x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

7-inch display
Waterfall / scope
USB, Ethernet, SP/DIF
SD Card
Antenna tuner

Accessories

-

RigReference ID

6314

MPN

ICOM-IC-007850
