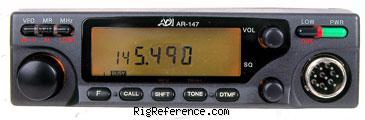

The ADI AR-147 is a VHF transceiver. It covers 118-180 MHz for reception and 144-148 MHz for transmission. The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 10.7 MHz and 2nd: 455 KHz. RF output power settings are High: 60 W, Medium: 25 W, Low: 7 W. The rig requires 11-15.8V DC and draws a maximum of 600 mA in receive and 12 A in transmit. Dimensions are 40 × 144 × 166 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 118-180 MHz
- Modulations
- AM FM
- Sensitivity
- 0.18 µV (12 dB SINAD)
- Selectivity
- 70 dB (no reference)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 KHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 60 W, Medium: 25 W, Low: 7 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-15.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 12 A
Physical
- Dimensions (w×h×d)
- 144 × 40 × 166 mm (5.67 × 1.57 × 6.54 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1999 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2213
- MPN
- ADI-AR-000147
Manuals, diagrams and brochures
- ADI AR-147 / AR-247 / AR-447 User's manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ADI AR-147. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ADI AR-147 in Good condition is around:
- USD 50
These estimates are based on the following prices:
