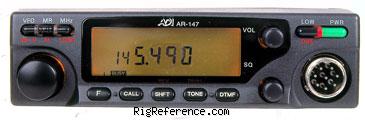

The ADI AR-147E is a Mobile VHF Transceiver. It covers 118-180 MHz for receive and 144-146 MHz for transmit. The transceiver uses a Double conversion superheterodyne receiver system with IF frequencies of 1st: 10.7 MHz and 2nd: 455 KHz. RF output is High: 60 W, Medium: 25 W, Low: 7 W. It features CTCSS/DCS and has an internal speaker. The AR-147E has 1 memory bank with 81 channels. Power requirements are 11-15.8V DC. Current drain is Max 600 mA (receive) and Max 12 A (transmit). Dimensions are 40 × 144 × 166 mm. Weight is 1.2 kg.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 81 channels in 1 bank(s)
Receiver
- RX-range
- 118-180 MHz
- Modulations
- AM FM
- Sensitivity
- 0.18 µV (12 dB SINAD)
- Selectivity
- 70 dB (no reference)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 KHz - Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 60 W, Medium: 25 W, Low: 7 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-15.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 12 A
Physical
- Dimensions (w×h×d)
- 144 × 40 × 166 mm (5.67 × 1.57 × 6.54 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1999 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS/DCS
- Accessories
- -
- RigReference ID
- 2214
- MPN
- ADI-AR-000147E
Manuals, diagrams and brochures
- ADI AR-147 / AR-247 / AR-447 User's manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ADI AR-147E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ADI AR-147E is around:
- USD 168 ~ USD 311
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
