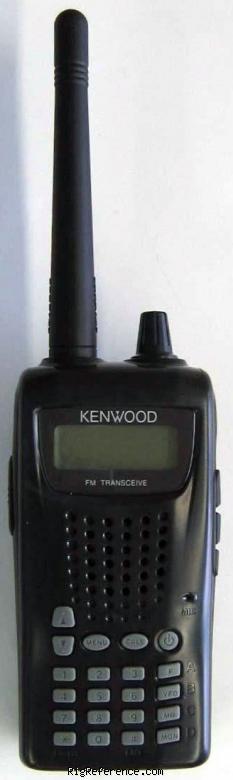

The Kenwood TH-255A is a handheld VHF transceiver. It covers 136-174 MHz receive and 144-148 MHz transmit frequencies. RF output is High: 3.5-5 W (depending on voltage), Low: 0.3 W. Power requirements are 6-9V DC (PB-43N or BT-14 battery packs). Current drain is 30-130 mA RX and Max 2 A TX. The radio weighs 259 gr with BT-14. Dimensions are 120 × 58 × 39 mm with BT-14.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 136-174 MHz
- Modulations
- FM
- Sensitivity
- 0.18 µV (12 dB SINAD, between 144-148 MHz)
- Selectivity
- 10 kHz (-6 dB), 28 kHz (-40 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 3.5-5 W (depending on voltage), Low: 0.3 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 6-9V DC (PB-43N or BT-14 battery packs)
- Current drain RX
- 30-130 mA
- TX
- Max 2 A
Physical
- Dimensions (w×h×d)
- 58 × 120 × 39 mm (2.28 × 4.72 × 1.54 in) with BT-14
- Weight
- 259 gr (9.1 oz) with BT-14
- Form factor
- Handheld
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3351
- MPN
- KENWOOD-TH-000255A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TH-255A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Kenwood TH-255A is around:
- USD 232 ~ USD 431
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
