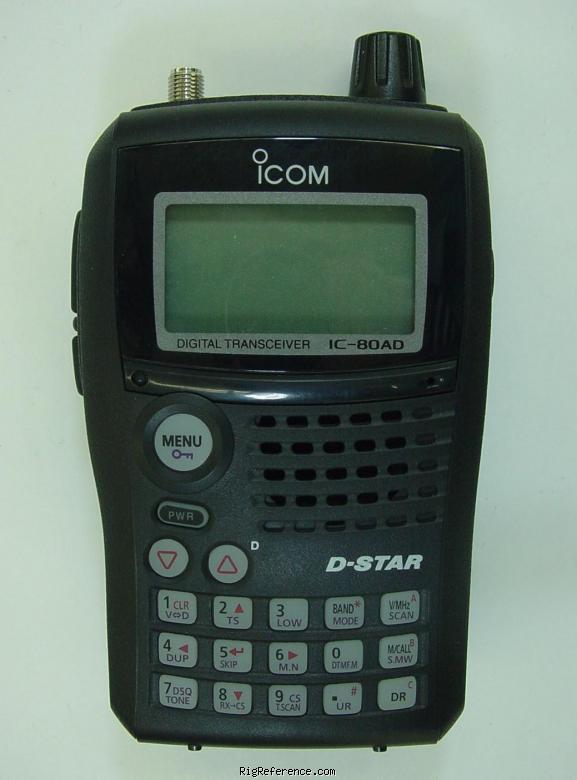

ICOM IC-80AD

General characteristics

HAM bands

2m

Frequency stability

2.5 ppm -4F to +140F (-20 C - +60 C)

Tuning steps

5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 kHz

Memories

1052 channels in bank(s)

Receiver

RX-range

0.495-824 / 849-867 / 894-999 MHz

Modulations

AM   FM   N-FM   W-FM   DV

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

? conversion superheterodyne

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-148 / 420-450 MHz (USA)

Modulations

FM   N-FM   DV

RF-output

5 / 2.5 / 0.5 / 0.1 W

Connections

Antenna

SMA

Impedance

50 Ω

Other

-

Electrical

Power requirements

7.4V DC (battery pack) 10-16V DC (external)

Current drain RX

2.1A max

TX

?

Physical

Dimensions (w×h×d)

58.4 × 103 × 34.2 mm (2.30 × 4.06 × 1.35 in)

Weight

?

Form factor

Handheld

Manufactured

Between 2007 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

Alpha tags. Submersible (1 meter/30 minutes). CTCSS and DTCS. Twin RX

Accessories

-

RigReference ID

4432

MPN

ICOM-IC-000080AD

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-80AD. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the ICOM IC-80AD is around:

• USD 219 ~ USD 407

This estimate is based on similar equipment and may not reflect the exact value of this model.
