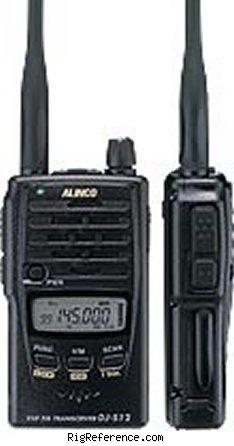

Alinco DJ-S12

Handheld VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Alinco DJ-S12 is a handheld VHF transceiver. Frequency range for both transmit and receive is 144-146 MHz (Asia). Image rejection is 60 dB. RF output power is selectable between High: 1 W and Low: 0.5 W. It features 1 memory bank with 100 memory channels. Power requirements are 3.7V DC (battery pack) or 3-6V DC external. Current drain in receive mode is 12-65 mA and maximum current drain in transmit mode is 800 mA. Dimensions are 98 × 57 × 28 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 100 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz (Asia)
Modulations: FM
Sensitivity: ?
Selectivity: 12 kHz (-6 dB), 35 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 60 dB
Audio output: ?

Transmitter

TX-range: 144-146 MHz (Asia)
Modulations: FM
RF-output: High: 1 W, Low: 0.5 W

Connections

Antenna: SMA
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 3.7V DC (battery pack) or 3-6V DC external
Current drain RX: 12-65 mA
TX: Max 800 mA

Physical

Dimensions (w×h×d): 57 × 98 × 28 mm (2.24 × 3.86 × 1.10 in)
Weight: 162 gr (5.7 oz) with antenna and EBP-60
Form factor: Handheld
Manufactured: Between 2006 and 200x

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2277
MPN: ALINCO-DJ-S000012
