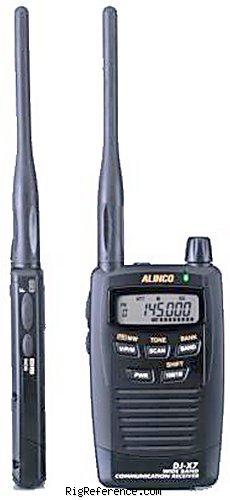

The Alinco DJ-X7T wideband receiver covers 100 kHz to 1299.995 MHz (less cellular) in AM, FM wide and FM narrow modes. The illuminated LCD display is large and easy to read. In addition to frequency information, it will also show the operating mode, memory channel. The DJ-X7T can also clone to other DJ-X7 units, sharing its programmed parameters through a wire connection (cable optional).

The DJ-X7T features 1000 memory channels. This radio has four user-selectable antenna choices: an internal AM bar antenna, an internal SW bar antenna, the earphone cable may be used as antenna or the external, supplied SMA whip antenna terminal may be activated. The SMA flexible whip antenna is removable. The DJ-X7T comes with an AC charger that can charge the supplied EBP-58N Lithium Ion battery and let you listen at the same time.

The Alinco DJ-X7K model is the same as above, but without the 816-902 MHz cellular gap and can be purchased via government or qualifying commercial purchase order or for export only (USA).

General characteristics

HAM bands
Frequency stability
-7 ~ +3 ppm
Tuning steps
1000 channels in 10 bank(s)


0.1-1300 MHz
AM   N-FM   W-FM
AM/FM: 12 kHz @ -6dB, 30 kHz @ -60 dB
W-FM: 130 kHz @ -6dB
Receiver system
Triple-conversion Superheterodyne
1st: 243.95 MHz
2nd: 39.155 MHz N-FM/AM, 10.7 MHz FM
3rd: 450 kHz N-FM/AM
Image rejection
Audio output


50 Ω


Power requirements
3.7V DC (Li-Io pack)
Current drain RX
90 mA


Dimensions (w×h×d)
58 × 96 × 15 mm (2.28 × 3.78 × 0.59 in)
103 gr (3.6 oz) with EBP58N
Form factor
Between 2005 and 200x

Other features

Amateur / Ham radio operators
Features + options
CTCSS. Bug detector. PC-programmable
RigReference ID

Manuals, diagrams and brochures

Alinco DJ-X7 Instruction manual PDF - Unknown size, submitted by RigReference
Alinco DJ-X7 Service manual PDF - Unknown size, submitted by RigReference
Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-X7. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Alinco DJ-X7 is around:

  • EUR 78.00
  • USD 44.00 ~ USD 31.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2021 EUR 80.00 Used / Mint SWL_de
2013 USD 129.95 Used / Good universal-radio
2013 USD 139.95 Used / Good universal-radio
2013 USD 99.95 Used / Good universal-radio
